Specifications
Specification3 :
Ipe AA100 120 140 160 180 200
Type of Steel For Building Structure :
Weathering Resistant Steel
Forming :
Hot-Rolled Steel
Price :
negoiate
Place of Origin :
CHNIA
Brand Name :
Zhengde
Packaging Details :
Customer settings
Delivery Time :
10days
Model NO. :
ZD-STRUCTURE
Material :
ASTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2
Product Name :
H Beam
Origin :
China
Member :
Steeltruss
Carbon Structural Steel :
Q235
Standard1 :
ASTM a 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192
Usage :
Commercial Buildings
MOQ :
3tons
Specification :
According to customer requirements
Connection Form :
Bolt Connection
Residential Wall Structure :
Wall Stud
Custom Cycle :
7-15 Days
Custom Made :
Yes
Payment Term :
30%T/T Advance + 70% Balance
Application :
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Lengh :
Customized
Specification2 :
W4 W5 W6 W8
HS Code :
7216101000
Surface :
Bazck or Galvanized
Transport Package :
Export Standard Package/as Request
Alloy or Not :
Low Alloy
Advantage :
Wear Resistance, Machinability, Easy Welding
Trademark :
Carbon Structural Steel, ZHENGDE
Samples :
US$ 0/Meter 1 Meter(Min.Order) | Request Sample
Supply Ability :
50000 Tons/Month
Standard :
GB, ASTM, DIN, JIS, AISI, BS
Description

Customized Pre-Engineerd Prefabricated Steel Structure Building Warehouse Steel Structure Price

Product Description

Product Description

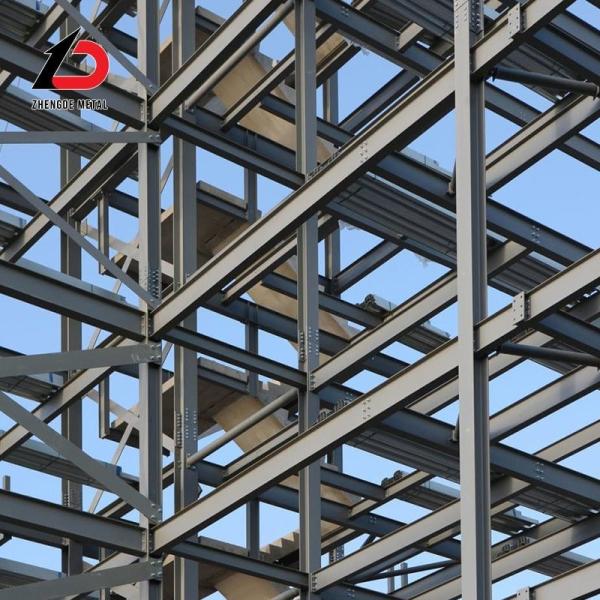

Customized DIN Prebuilt Metal Buildings with Bolt Connection Steel structure, also called steel frame, refers to the form of building structure that uses steel components to bear loads. It usually consists of vertical steel columns and horizontal I-beams forming a skeleton in a rectangular grid to support the floors and roofs of the building. and walls. SC technology makes the construction of skyscrapers possible. Mainly used in industrial plants, long-span structures, high-rise structures, multi-high-rise civil buildings, structures with high dynamic load and seismic resistance requirements, plate and shell structures, detachable structures, light steel structures, and reinforced concrete composite structures, etc

Components Specifications
Embedded Parts Anchor Bolt M30*1050
High Strength Bolt M20,10.9S
Common Bolt M20
Galvanized Bolt M12
Shear Nail M19*80
Tir Rod Φ12
Brace Rod Φ32*2.5
Self-tapping Screw M5
Main Steel
structure parts
Steel Column(Q355B) H500X250X8X12,H450X220X8X12 ,H300~700X250X6X10
Wind Column(Q355B) H400X200X6X8
Roof Frame Beam(Q355B) H700~450X200X6X10,H450X200X6X10
Main Beam(Q355B) H600X220X8X14
Secondly Beam(Q355B) HN346X174X6X9
Ring Beam(Q235B) 100*1.8
Stairs [20U-steel+3mm Riffled plate
Roof Purlin(Q235B) C120*50*20*2.0
Tir Bar(Q235B) Φ140*4.0
Column Brace Φ140*4.0
Horizontal Brace Φ25 Round bar
Angle Brace L50*4.0
Roof Purlin(Q235B) Z250X75X20X2.2
Wall Purlin(Q235B) C220X70X20X2.2
Connecting Panel(Q355B) 6-20MM steel panel
Other Steel structure parts Rolling Gate(including motor) 4000X3500X2 PCS,3200X3500X1 PCS
Aluminum Louvers 1m high
Grating +Hand rail 1m high
Floor Deck 1.0Thickness 880#
Damper 2.0Thickness Galvanized panel
Roof Panel 50mmThickness rock sandwich panel
External Wall panel 50mm Thickness rock sandwich panel
Trimming 0.5 thickness
Down pie(including parts) φ110PVC
Gutter (including parts) 1.2 Thickness of stainless gutter

Our Advantages

Customized DIN Prebuilt Metal Buildings with Bolt Connection

Customized DIN Prebuilt Metal Buildings with Bolt Connection
Customized DIN Prebuilt Metal Buildings with Bolt Connection

Customized DIN Prebuilt Metal Buildings with Bolt Connection
Customized DIN Prebuilt Metal Buildings with Bolt Connection

Customized DIN Prebuilt Metal Buildings with Bolt Connection
Customized DIN Prebuilt Metal Buildings with Bolt Connection


Customized DIN Prebuilt Metal Buildings with Bolt Connection Customized DIN Prebuilt Metal Buildings with Bolt Connection
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

Detailed Photos

Customized DIN Prebuilt Metal Buildings with Bolt ConnectionCustomized DIN Prebuilt Metal Buildings with Bolt Connection

Packaging & Shipping

Customized DIN Prebuilt Metal Buildings with Bolt Connection

Company Profile

Customized DIN Prebuilt Metal Buildings with Bolt ConnectionShandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Middle East region, Russia, Africa, North America, and other parts of the world.
Company Philosophy:
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.
If you encounter dishonest manufacturers during the procurement process, we can provide you with a professional legal team. We hope our cooperation is full of sunshine!
Welcome to the company for investigation and cooperation, and look forward to friendly cooperation with you!
Thank you for your support to our company. We are pleased to receive your inquiry and will reply to you as soon as possible.
