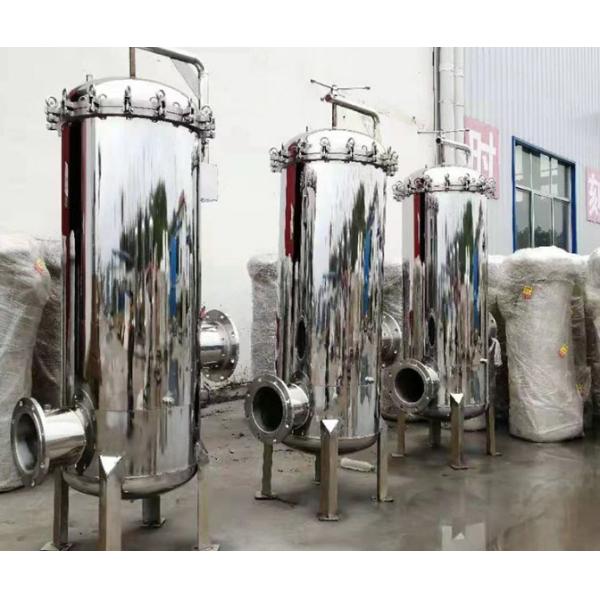

Large Flow Industrial Circulating Water Treatment Bag Filter Housing Machine

Introduction of Bag Filter Housing Machine

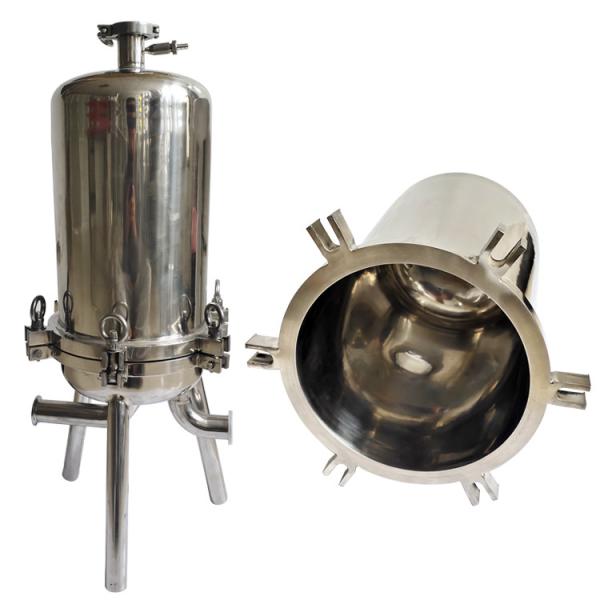

Top and bottom open Bag Filter Housing Machine are used when there are very high requirement of cleaning the filter housing. The bottom part of the housing could be disassembled for a thorough washing. It is usually used for pharmaceutical application.

The design of the cartridge filter housing fully meets the requirements of sanitary and GMP. It is a high grade liquid filter used in the field of food, beverage, pharmacy, and biotech industries. The structure has no sanitary corners and is easy to clean. it drains thoroughly and has no concerns about residual liquid. the polishing accuracy can reach up to 0.3um. Electric polishing can be carried out while mechanically polishing, which completely solves the problem of polishing dead corners.

Features of Bag Filter Housing Machine

Multiple sanitary Filter Housings Innovative Design Enhances Cleanability and Microbiological Safety due to Crevice-Free, Polish and Hygienic Design

• Available 15 rounds to 75 Round Models for 20” .30” and 40”Cartridges

• 0.25 RA polished Finish for Head and Elbows and inlet and Outlet are Connections from 1” to 3”, 316 and 316L Stainless Steel Materials of Construction are Available.

• Sealing Systems Available for 226 or 222 O-ring Cartridges or DOE cartridges

• Swing bolts open both at top and bottom to assure the sanitary grade requirement

• Rotated arm to assure the easy operation for cleaning and filter cartridge replacement.

Parameters of Bag Filter Housing Machine

Main advantages

1. The side leakage rate of the filter bag is small, which effectively ensures the filtration quality.
2. Bag filter can bear greater working pressure, small pressure loss, low operating cost and obvious energy saving effect.
3. The filtration accuracy of the filter bag has been continuously improved, and has reached 0.5μm.

Bag Filter Housing Machine of Application

Factory introduction

Packaging logistics

FAQ

Q1. How can we get the quotation of flter cartridges
A: Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
Q2. How about your delivery time?
A: Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling / mould made.
Q3. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
