Specifications
Brand Name :
JN
Model Number :
SM-20/2.5-50um
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1piece
Price :
$40-$50 per piece
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500pcs per week
Delivery Time :
7-10days
Packaging Details :
pp cushion film + wooden case
Material :
stainless steel 316L
Diameter :
2.5inch
Length :
20inch
Filtration rate :
50um
End caps :
226
Filtration media :
sintered metal filter mesh
Shape :
cylindrical type
Usage :
pharmaceutical filtration
Description

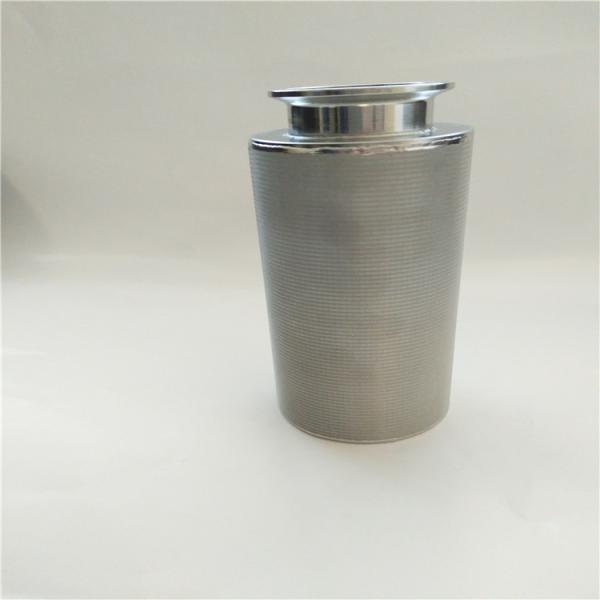

Pharmaceutical Filtration 50 Micron 316L Ss Sintered Filter Cartridge

Stainless steel 316L sintered mesh filter description

Sintered filter elements made of stainless steels, bronze, nickel based alloys, titanium and several special alloys can be manufactured seamless up to 1,600 mm and length and 320 mm OD.

Stainless steel 316L sintered filter Specification

Product Details

 material SS316L Sintered wire mesh
Filter diameter Ø60mm
filtration rate 50um
end caps 222-swing, 226-swing, SOE/DOE/M series/BSP series/ NPT series
filtration media sintered metal wire mesh
O-ring / Gasket PTFE/ EPDM/ Nitrile/silicone/ Viton
filtration Area 0.04m²-0.75m²
working tem 450℃
working pressure 1.5-2.5mpa
pressure drop 0.6-1.0mpa
application

*polyester, pre polymer, film filtration

*lithium battery, slurry filtration, paint, glue filtration

*gas, steam filter, high temperature liquid, viscous liquid filtration

*food and beverage filtration

*pharmaceutical filtration
welding argon ARC welding, spot welding, laser welding, plasma welding
method operation: assembled in filter housing

characteristics:

* high flow, high precision

* high porosity, permeability, pressure drop very low

* excellent mechanical strength, resistance to high pressure up to 200Kg

* easy to clean, back pulsing

* corrosion resistance, high temperature resistance

* good processing performance, folding, welding, adhesive

* design flexibility

Service OEM and design department

*common size,

*customerized size

* design make drawing
sales team

fast reply in 24hours
quality department Bubble point test + PMI chemical material composition test
quality warranty 1 Year for machinery warranty
Shipment way

* by air,

*by international express,

* by sea

*by train

Package way

plastic cushion film + wooden case

Other material and size are also available

  • Material: black wire mesh, SS201, SS304, SS310, SS316, SS316L, SS904, SS904L, Duplex 2205, Duplex2207, Hastelloy C-276, Monel 400, Inconel600, Inconel625, Inconel825
  • Filter media: sintered wire mesh, pleated filter mesh, pleated sintered fiber felt
  • Filter diameter: 1.38inch, 2.36inch, 2.5inch, 3inchFilter length:5inch, 10inch, 20inch, 30inch, 40inch
  • Filtration rate: 1um-200um

Product details

Pharmaceutical Filtration 50 Micron 316L Ss Sintered Filter Cartridge

Pharmaceutical Filtration 50 Micron 316L Ss Sintered Filter CartridgePharmaceutical Filtration 50 Micron 316L Ss Sintered Filter Cartridge

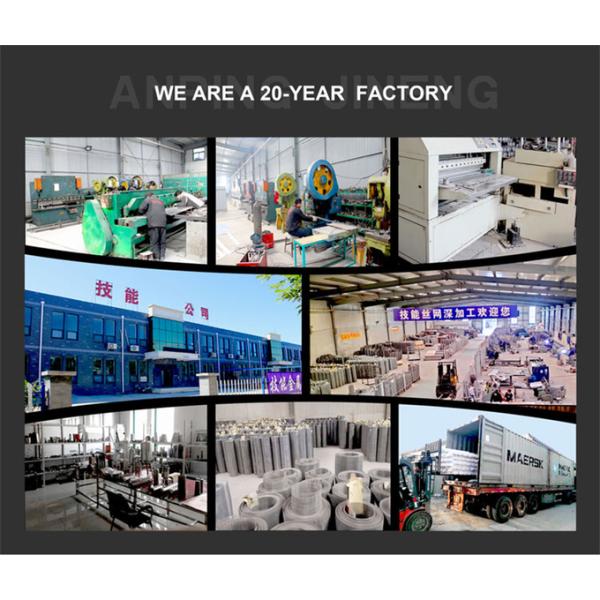

About Company
