Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316
Specifications
Brand Name :
apjineng
Model Number :
JN-17
Certification :
ISO
Place of Origin :
Hebei, China
Condition :
New
Warranty :
1.5 years
Length :
as you required
Width :
as you required
Certificate :
ISO9001
MOQ :
Negotiate
Price :
$1.50-$200.00
Packaging Details :
wooden case
Delivery Time :
5-12 days
Payment Terms :
Western Union, L/C, T/T，PayPal
Supply Ability :
1000 Piece/Pieces per Week
Description

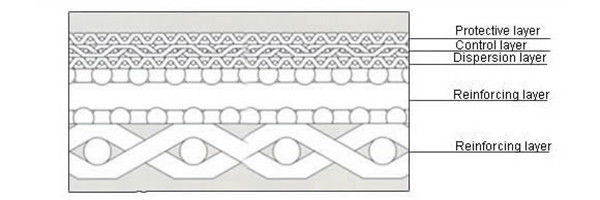

The Structural Drawing of Type A Sintered Wire Mesh, 5-Layer Sintered Wire Mesh:

Sintered Perforated Wire Mesh , Micro Perforated Metal Wire Mesh SUS304 316

Type A Sintered Wire Mesh is a standard combination of 5-layer sintered wire mesh which has the widest application. Five different layers of stainless steel wire mesh are combined, and then sintered together through vacuum sintering, compressing, and rolling, forming a porous product.

Material:


The standard materials are SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
Special Alloy Steel Hastelloy, Monel, Inconel are acceptable base on customer's requirement.


Dimension:


The standard dimensions are 500x1000mm, 600x1200mm and 1000x1000mm, 1200x1200mm, and other dimensions in between are also available.


Characteristics:


Wide range of filtering rate

It has the steady filtering rate from 1 micron to 100 micron.


Steady Filtering Rate


Due to the two protective layers, the mesh of the filter layer is not easy to deform.


High Mechanical Strength


Owing to the support of fourth and fifth reinforcing layers, it has higher resistance to pressure and mechanical strength.


Easy to be Cleaned


It is very easy to be washed, especially to reverse wash, by virtue of adopting the surface layer filtration material


Heat Resistance


It can resist the heat up to 480°C.


Corrosion Resistance


It has the property of anti-corrosion as a result of adopting the material of SUS316L.


Tractability


It suits for many kinds of machining, such as cutting, bending, punching, stretching, welding and so on.

Technical Data:

Model Nominal Filter Rating
( u)		 Structure Thicknes s
(mm)

Air

Permeability

(L/min/cm2)

 Bubble Pressure (mm H2O) Weight
(kg/m2)		 Porosity
(%)
A5-1 1 100+400×2800+100+12×64+64×12 1.7 1.81 360-600

5-layer sintered wire mesh(8.4)

6-layer sintered wire mesh
(14.4)

37%
A5-2 2 100+325×2300+100+12×64+64×12 1.7 2.35 300-590
A5-5 5 100+200×1400+100+12×64+64×12 1.7 2.42 260-550
A5-10 10 100+165×1400+100+12×64+64×12 1.7 3.00 220-500
A5-15 15 100+165×1200+100+12×64+64×12 1.7 3.41 200-480
A5-20 20 100+165×800+100+12×64+64×12 1.7 4.50 170-450
A5-25 25 100+165×600+100+12×64+64×12 1.7 6.12 150-410
A5-30 30 100+450+100+12×64+64×12 1.7 6.7 120-390
A5-40 40 100+325+100+12×64+64×12 1.7 6.86 100-350
A5-50 50 100+250+100+12×64+64×12 1.7 8.41 90-300
A5-75 75 100+200+100+12×64+64×12 1.7 8.7 80-250
A5-100 100 100+150+100+12×64+64×12 1.7 9.1 70-190

Note: The 6-layer sintered wire mesh is to be added one layer of 12 mesh to the 5-layer sintered mesh. Its thickness is 3.5mm, it has the higher anti-pressure ability.
