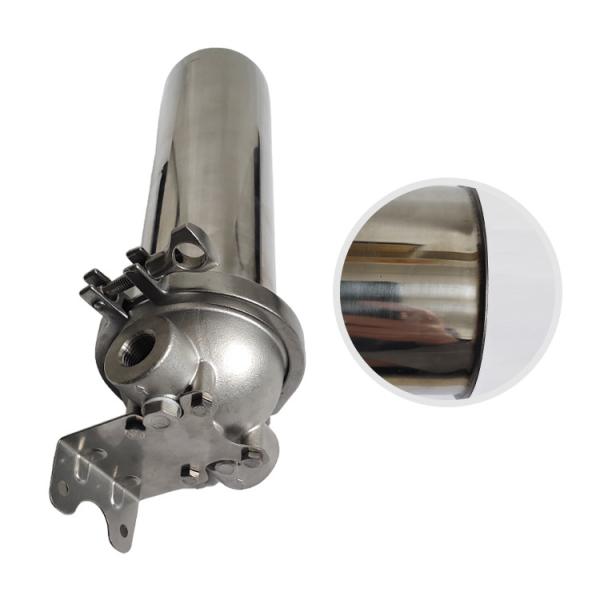

0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
Specifications
Brand Name :
APjineng
Certification :
ISO
Place of Origin :
China
After-sales Service Provided: :
Video technical support, Field maintenance and repair service,
Application :
Commercial Ro System
Packing :
Carton
Length :
10"/20"/30"/40"
Type :
Housing
Condition :
New
MOQ :
Negotiate
Price :
$1.50-$200.00
Packaging Details :
wooden case
Delivery Time :
5-12 days
Payment Terms :
Western Union, L/C, T/T，PayPal
Supply Ability :
1000 Piece/Pieces per Week
Description

SS304L Cartridge Filter Housing Can Remove Scale Filter Sediment

Product Description

Catridge filter housing with PP/NO/CARBON elements inside to filter impurities out of liquid, cleaning and

soften water with easy way.
Inside catridge could be 10" 20" 30"40 ' length;
Micron rating from 0.1um to 100um
Suitable for different kinds and material elements
Entry connection: Flanges, Npt, etc
Available in 304 or 316 stainless steel;
2" ANSI Inlet and Outlet;
Buna NTM seals standard (Viton also available)
Maximum operating pressure of 8 bar (standard model)

Stainless steel liquid filter mainly used in pharmacy, chemical refinement, brewing, drinking water and

other industrial fields, for the liquid filtration and clarification filtration purpose. It can effectively remove

the suspended substances, rust, etc. All of the material which contact with main liquid are made of 316L

and 304 stainless steel, and after mechanical and electrical polishing, it can provide excellent durability

and maximum corrosion resistance ability, the filter can match with most liquid materials and flow rate request.

connections

Inlet/Outlet

Vent

1/4'' female

Drain

1'' male or as your request

Lid/cover Type

Swing Bolts or Tri Clamp(only for single round)

Operating Pressure

Max. 7.2 bar(108 psi)

Product Features

Filter cartridge has various standard connection types, lotus type distribution, CNC machining, high precision,

no effusion, no dead Angle.

Surface adopts mirror polish. Roughness is 0.4μm for outer surface, 0.3μm for inner surface.

ISO - 2852 standards, sanitary level configuration, the top of the pressure gauge connection is stretching R model

plane welding, quick release coupling as standards configuration.
Three legs support, height adjustable, is not easy to damage the clean room on the ground.
Silicone rubber, epdm rubber and PTFE sealing material.

Product Details

0.1um - 100um SS Micron Filter Housing , Stainless Filter Housing Height Adjustable
