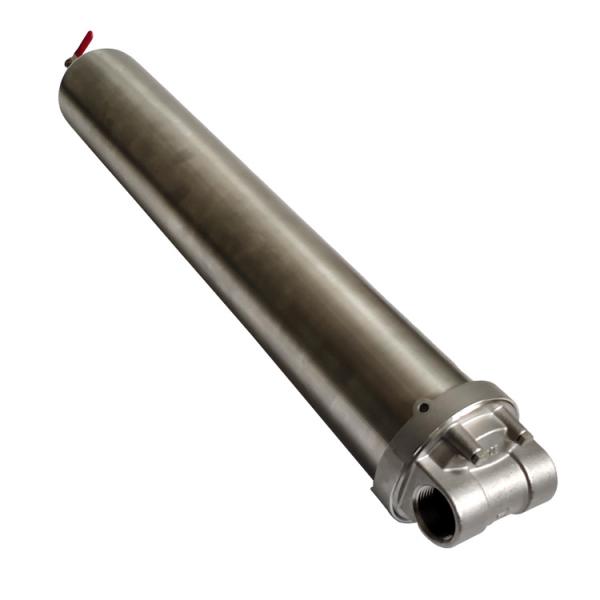

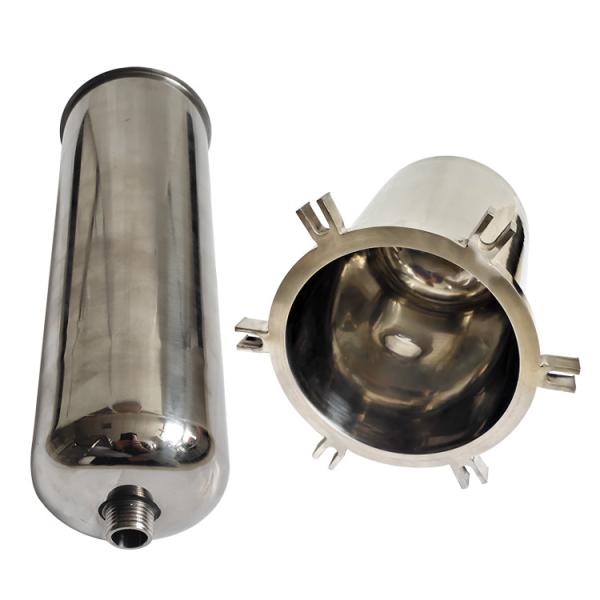

Stainless Steel 304 Cartridge Filter Housing Filtration Accuracy Above 3 Micron Durable

Cartridge Filter Housing Product Description

The cylinder shell generally made of stainless steel , the internal use of PP melt blown , burning, folding,

titanium filter, activated carbon filter and a tubular filter as the filter element is selected according to the

different filter media filter element and design technology, to meet the requirement of water quality. It can

be used for solid-liquid separation of various suspensions with high environmental requirements and high

filtering accuracy. It has a wide range of applications and is suitable for pharmaceutical, food, chemical,

environmental protection, water treatment and other industrial fields.

Product Features

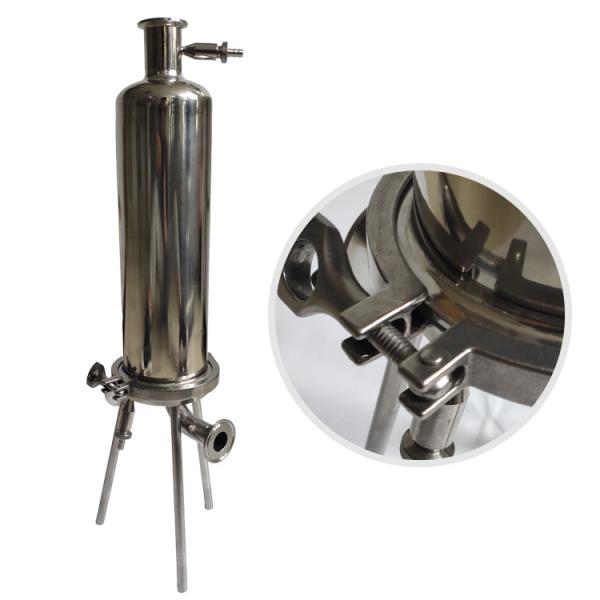

Three legs support, height adjustable, is not easy to damage the clean room on the ground.
Silicone rubber, epdm rubber and PTFE sealing material.

Filter cartridge has various standard connection types, lotus type distribution, CNC machining, high precision,

no effusion, no dead Angle.

Surface adopts mirror polish. Roughness is 0.4μm for outer surface, 0.3μm for inner surface.

ISO - 2852 standards, sanitary level configuration, the top of the pressure gauge connection is stretching R

model plane welding, quick release coupling as standards configuration.

Cartridge Filter Housing Product Application

Stainless steel liquid filter mainly used in pharmacy, chemical refinement, brewing, drinking water and other

industrial fields, for the liquid filtration and clarification filtration purpose. It can effectively remove the suspended

substances, rust, etc. All of the material which contact with main liquid are made of 316L and 304 stainless steel,

and after mechanical and electrical polishing, it can provide excellent durability and maximum corrosion resistance

ability, the filter can match with most liquid materials and flow rate request.
