5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
Specifications
Brand Name :
jineng
Model Number :
304 316
Certification :
IOS
Place of Origin :
China
MOQ :
1 pcs
Price :
1-99Pieces 65$/Piece >=100Pieces 45$/Piece
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs/months
Delivery Time :
7-15 days
Packaging Details :
wooden case/carton
Product Name :
Sintered filter Elment
Brand :
JIneng
sample :
avilable
Filter rating :
99%
Type :
filter element
Shape :
cylindrical
Filter length :
custom-made
Description

Stainless Steel 304 5-Lays Sintered Filter Element Water Treatment

Sintered Metal Filter Production Introduce

The robustness of design, that is provided by a fully welded metallic element or cartridge, is required to resist deterioration in harsh operating environments where the fluids present are aggressive, high temperatures are experienced or where the operating differential pressures are high.

For some filtration applications, the use of a conventional disposable polymeric cartridge may simply be environmentally unacceptable and the use of a re-cleanable cartridge will often give more cost effective filtration.

Sintered Metal FilterSpecification
material
SS304, 316, 316L
filter diameter
15mm-300mm
filter length
5inch, 10inch, 20inch, 30inch
micron rating
0.1um-200um
end caps
DOE, SOE, 222, 226, BSP, NPT
filtration media
sintered wire mesh, sintered fiber felt
o-ring / gasket
PTFE/ EPDM/ Nitrile/silicone/ Viton
filtration area
0.04m²-0.75m²
working temperature
450℃
working pressure
1.5-2.5mpa
pressure drop
0.6-1.0mpa
application
*polyester, pre polymer, film filtration
*lithium battery, slurry filtration, paint, glue filtration
*gas, steam filter, high temperature liquid, viscous liquid filtration
*food and beverage filtration
*pharmaceutical filtration
welding
argon ARC welding, spot welding, laser welding, plasma welding
method operation
assembled in filter housing

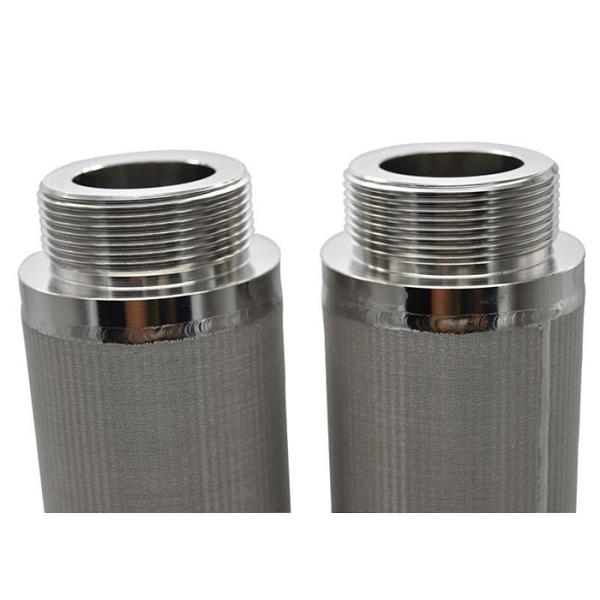

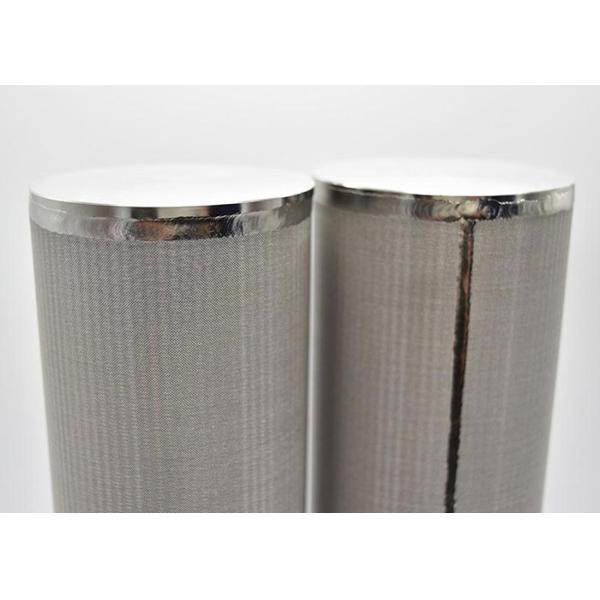

Sintered Metal Filter Picture

5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter

5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter

Sintered Metal Filter Feature

  • Shape stability by self-supporting structure
  • Suitable for high differential pressures
  • Thermal stability up to 950°C
  • High corrosion resistance
  • High permeability and low Dp
  • Defined filtration by exact pore size distribution
  • Filters can be back flushed and cleaned easily
  • Welding and machining are possible

About Company

5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter

Packing and Delivery

5 Micron Sintered Metal Candle Filter Elment 15mm-300mm Diameter
