Specifications
Brand Name :
apjineng
Model Number :
JN-17
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiate
Price :
$1.50-$200.00
Payment Terms :
Western Union, L/C, T/T，PayPal
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
5-12 days
Packaging Details :
wooden case
Product name :
Expanded Metal Mesh
Technique :
Perforated
Material :
Aluminum sheet
Feature :
Corrosion Resistance
Hole shape :
Diamond Hole
Packing :
On your request
Advantage :
Rich experience
Description

Factory Supply Durable Diamond Aluminum Expanded Stainless Steel Mesh

Description

Standard expanded metal, also known as raised expanded metal, is produced by simultaneously slitting and stretching metal sheets or coils. It features a surface of raised diamond-shaped openings. In addition, raised strands form an angle to the original plane of the solid sheet, adding additional strength and rigidity. It also delivers great anti-skid performance. As a result, it has virtually endless applications including road fences, platforms and stair treads, machine guarding, etc.

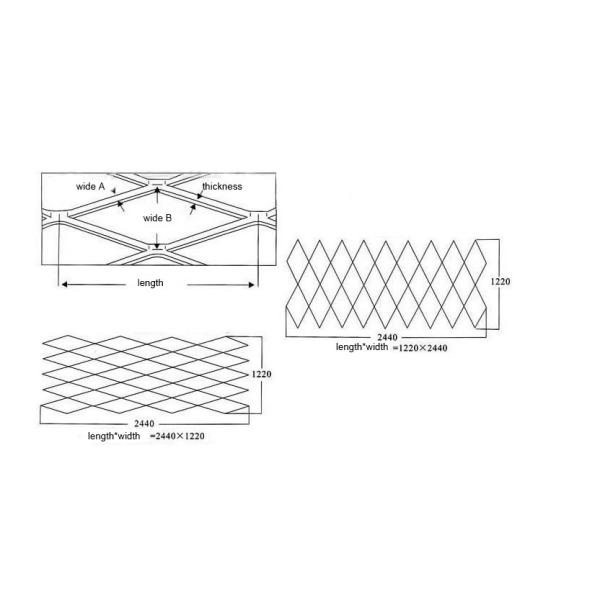

Specification

Style Minimum Thickness (inches)A Nominal Weight in lbs./100
Sq. Ft.B		 Design Size (inches)C Opening Size (inches)C Strand Size (inches) Overall Thickness (inches) Open Area
SWD LWD SWO LWO Width Thickness
½"-#18 0.044 69 0.500 1.20 0.383 0.937 0.087 0.048 0.178 65%
½"-#16 0.055 87 0.500 1.20 0.372 0.937 0.087 0.060 0.183 65%
½"-#13 0.085 143 0.500 1.20 0.418 0.876 0.096 0.090 0.254 62%
¾"-#18 0.044 46 0.923 2.00 0.790 1.750 0.106 0.048 0.212 77%
¾"-#16 0.055 57 0.923 2.00 0.779 1.760 0.106 0.060 0.217 77%
¾"-#13 0.085 87 0.923 2.00 0.751 1.687 0.107 0.090 0.232 77%
¾"-#9 0.128 194 0.923 2.00 0.666 1.562 0.160 0.135 0.347 65%
1½"-#16 0.055 43 1.33 3.00 1.179 2.750 0.115 0.060 0.234 83%
1½"-#13 0.085 65 1.33 3.00 1.152 2.625 0.115 0.090 0.246 83%
1½"-#9 0.128 130 1.33 3.00 1.077 2.500 0.155 0.135 0.338 77%

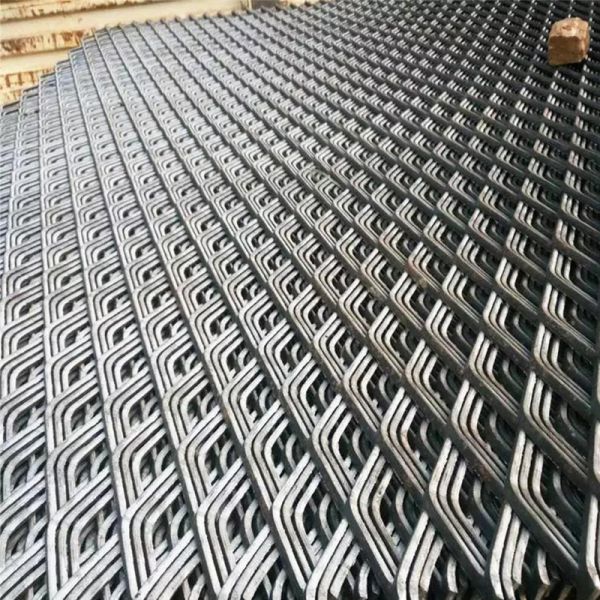

Pictures

Durable Diamond Aluminum Expanded Stainless Steel Mesh Corrosion Protection

Durable Diamond Aluminum Expanded Stainless Steel Mesh Corrosion Protection

About Company

Packaging logistics

Durable Diamond Aluminum Expanded Stainless Steel Mesh Corrosion Protection

FAQ

Q1. How can we get the quotation of flter cartridges
A: Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
Q2. How about your delivery time?
A: Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling / mould made.
Q3. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
