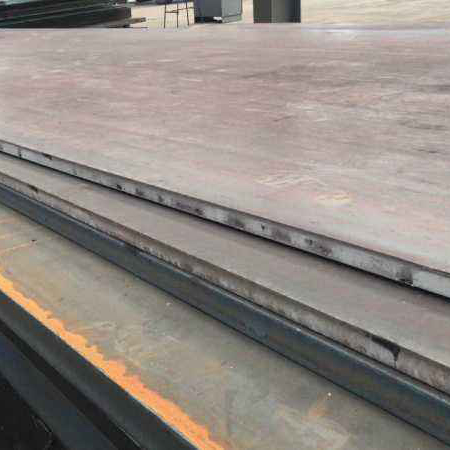

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate
NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate
Specifications
Brand Name :
ANSTEEL
Model Number :
NM360 NM400 NM450 NM500
Certification :
ASTM,JIS,EN,DIN,GB, JIS
Place of Origin :
China
MOQ :
1Ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Tons/Year
Delivery Time :
7-10 days
Packaging Details :
Seaworthy packing for exporting
Grade :
NM360 NM400 NM450 NM500
Surface Treatment :
Coated, Oiled or as required
Length :
1000mm-12000mm
Width :
1000mm-2500mm
Thickness :
2mm-150mm
Hardness :
360 400 450 500HB
Special Use :
Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
Application :
Boiler plate, Container plate,Flange plate,Ship plate
Description

Prime Abrasion Performance Wear Resistant Steel Plate Brinell Hardnes Steel Plate Sheet/NM400 NM500

Product Introduction

Wear resistant steel plate by low carbon steel and alloy wear-resisting layer of two parts, alloy wear-resisting layer is commonly 1/3 ~ 1/2 of total thickness.Work provided by the substrate resistance comprehensive properties such as strength, toughness and plasticity of the force, provided by the alloy wear-resisting layer wear-resisting performance meet the demand of specified conditions.

Item Prime Abrasion Performance Wear Resistant Steel Plate Brinell Hardnes Steel Plate Sheet/NM400 NM500
Specifications

Width : 10mm~3500mm

Thickness : 0.3mm~500mm

Length : 2m,2.44m,3m,6m,8m,12m, or as required.
Material Chinese:
NM360, NM400, NM450, NM500, NM550, NM600,NM700
Q345(A/B/C/D/E), Q390(B/C/D/E), Q420(B/C/D/E), Q460(C/D/E), Q550(C/D/E), Q620(C/D/E), Q690(B/C/D/E), Q890(C/D),
27MnTiB, DB200, 22SiMn2,
Germany:
Xar400 ,Xar450,Xar500,Xar550,Xar600
Finland:
RAEX400,RAEX450,RAEX500
Hardness
360 400 450 500HB
Size Tolerance ±1%-3%
Processing method Bending, Welding, Decoiling, Cutting, Punching, Polishing or as customer's request
Technology Hot roll, cold roll, cold drawn, ect.
Surface Mild steel plain finish, hot dip galvanized, pre galvanized, color coated, ect.

Chemical Composition

Grade C Si Mn P S Cr Mo Ni B
NM360 ≤0.25 ≤0.70 ≤1.30 ≤0.025 ≤0.010 ≤1.4 ≤0.50 ≤1.00 ≤0.004
NM400 ≤0.25 ≤0.70 ≤1.60 ≤0.025 ≤0.010 ≤1.4 ≤0.50 ≤1.00 ≤0.004
NM450 ≤0.26 ≤0.7 ≤1.6 ≤0.025 ≤0.01 ≤0.5 ≤1.5 ≤0.8 ≤0.004
NM500 ≤0.38 ≤0.70 ≤1.70 ≤0.020 ≤0.010 ≤1.20 ≤0.65 ≤1.00 0.005-0.006

Grade Tensile Strength(MPa) Elogation(%) (-20)AKV(J) Hardness(HB)
NM300 1000(min) 14(min) 24(min) 270-330
NM360 1100(min) 12(min) 24(min) 330-390
NM400 1200(min) 10(min) 24(min) 370-430
NM450 1250(min) 7(min) 24(min) 420-480
NM500 - - - 470(min)
NM550 - - - 530(min)
NM600 - - - 570(min)

Product Show

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate

Packaging Details

1. Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate

Shipping

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate

About Company


Our company was established in 2012 and located in Wuxi, the largest steel distribution center in East China.
The company has 20,000 square meters of indoor storage, with an annual output of 12,000 tons. The main customer groups involve Southeast Asia, the Middle East, Europe, Africa, North America, Oceania, etc. Since its establishment, the company has been committed to providing customers with high-quality steel and has become a leading supplier of comprehensive material solutions in China.
Products cover steel structure engineering, nuclear power engineering, marine engineering, construction and bridge engineering, construction machinery and equipment production, metallurgical equipment production and other fields.
We adherence to the "restraining men talent concept, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become china's best solution steel sales company.

F&Q


Q: ARE YOU FACTORY OR TRADER?
A: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
