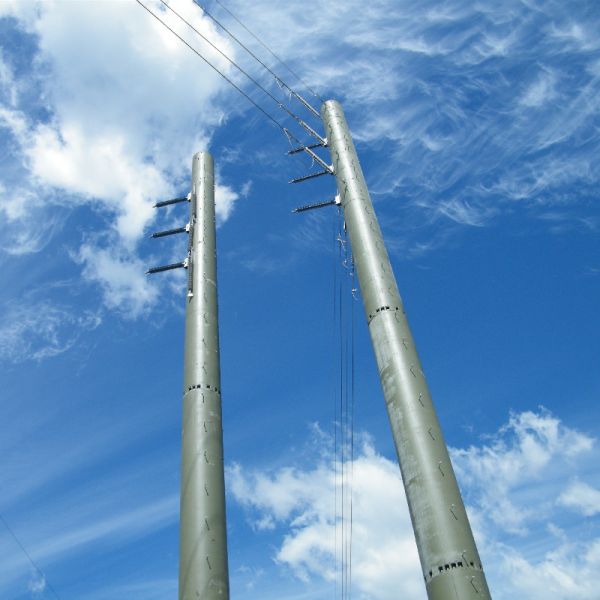

110kv 220kv Power Plyon Steel Electric Transmission Pole
110kv 220kv Power Plyon Steel Electric Transmission Pole
Specifications
Brand Name :
GUANGXIN
Model Number :
GX-5501
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD998-1998 per set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
20-35 days
Packaging Details :
wooden pallet and plastic bubble sheets
Name :
110kv 220kv Power Plyon Steel Electric Transmission Pole
Material :
Q235B or Q345B
Surface finish :
hot dip galvanized
Voltage :
33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
Wind Load :
0.35-0.85kN/sqm
Transportation :
by Sea to clients destination port
Galvanization Standard :
ASTM A123/ ISO 1461
Grade of bolts and Nuts :
Grade 4.8, 6.8, 8.8
Description

110kv 220kv Power Plyon Steel Electric Transmission Pole

Specification:

Material Certificate Q235B or Q345B
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.

1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles

4, Multi-functional smart city light poles

5, High mast steel poles and towers for lighting, communication and landscaping.
