Q235b Q345b Self Supporting Angle Tower With Flat Steel Plate Base
Q235b Q345b Self Supporting Angle Tower With Flat Steel Plate Base
Specifications
Brand Name :
Guangxin
Model Number :
GX-5508G
Certification :
ISO9001:2008 SGS COC
Place of Origin :
Guangzhou
MOQ :
1set
Price :
USD1880-2100
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
300ton/month
Delivery Time :
20-30days
Packaging Details :
Cotton sheets or cloth package by bundle
Material :
Q235b or Q345b
Product Name :
Self Supporting Angle Tower with Flat Steel Plate Base
Surface treatment :
Hot-dip Galvanization
Height :
20-50M
Design Loading :
As per requirement and specification by Clients worldwide.
Welding Method :
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Tension strength (Mpa) :
360~510
Description

Self Supporting Angle Tower with Flat Steel Plate Base​

Specification:

Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

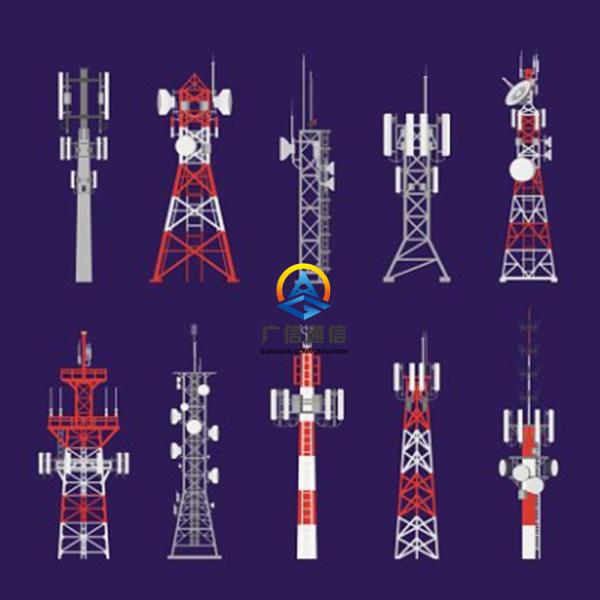

Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
Convenient transportation and installation.
