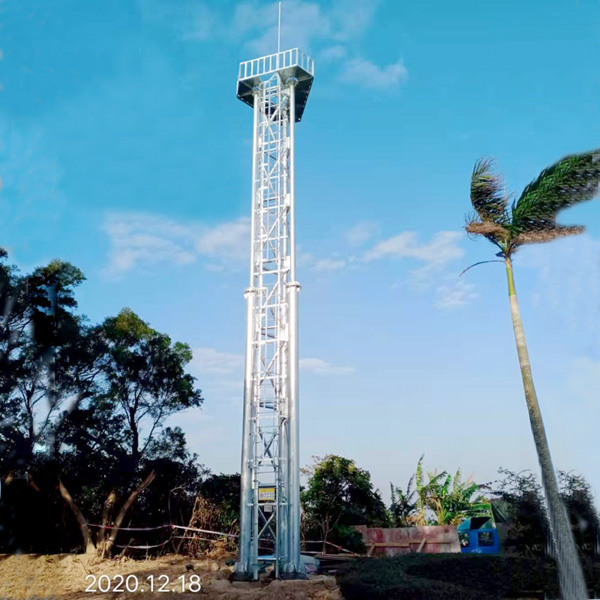

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
Specifications
Brand Name :
GUANGXIN
Model Number :
STP-013
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD498-8798 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
20-30days
Packaging Details :
plastic bubble sheets and pearl wool sheets
Name :
monopole antenna Tower POLE
Material :
carbon steel
Height :
15m to 35m or other customized height
Wind Speed :
35-50m/s
Lifetime :
20-50 years
Warranty :
3 years
Delivery time :
20-30 days
Description

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting

Custom Design Galvanized Steel Communication Poles for Radio and 3G/4G/5G Telecom Antenna Stations

Custom designed and fabricated steel tower for worldwide communication applications.

All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.

The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.

The popular steel communication poles include conical or tapered pole, hexagonal or polygonal steel pole, straight round steel pole and octagonal pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications

Descriptions Steel poles for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.

The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.

Applicable Examples of Steel Tower and Pole

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting

Communication Tower

Street/Roadway/highway/stadium light pole

Traffic signal light pole,Traffic CCTV monitor camera and sign pole

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting

Smart City Management System Light Pole

Signage/Advertising Billboard or LED display pole or gantry

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting

High Mast Landscape/Lighting/Communication Steel Tower

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting

Artificial Tree Camouflaged Antenna Cell Tower
