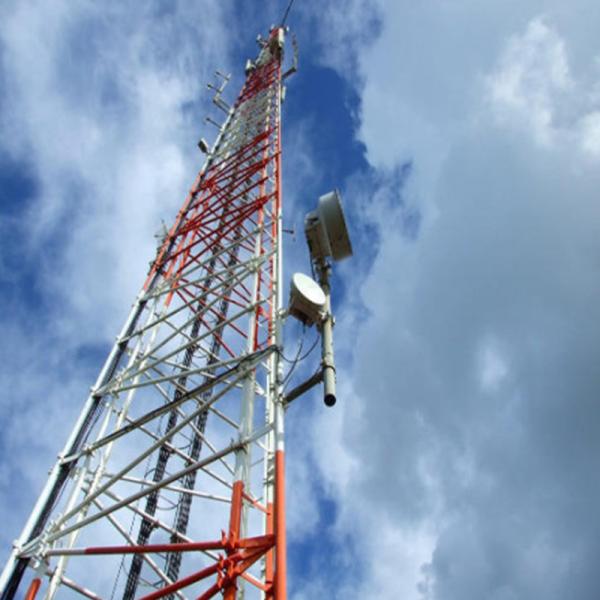

5G Signal Microwave WIFI 4 Legged Angle Steel Tower Hot Dip Galvanized
5G Signal Microwave WIFI 4 Legged Angle Steel Tower Hot Dip Galvanized
5G Signal Microwave WIFI 4 Legged Angle Steel Tower Hot Dip Galvanized
5G Signal Microwave WIFI 4 Legged Angle Steel Tower Hot Dip Galvanized
Specifications
Brand Name :
Guangxin
Model Number :
GX-5621G
Certification :
ISO9001
Place of Origin :
Guangzhou
MOQ :
1set
Price :
USD1880-2100
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
300ton/month
Delivery Time :
20-30days
Packaging Details :
Cotton sheets or cloth package by bundle
Product Name :
Hot-dip Galvanized 5G Signal Microwave WIFI 4 Legged Angle Steel Tower
Hot-dip Galvanization :
ISO 1461 2009, ASTM A123
Tension Strength (Mpa) :
360~510
Design Wind Speed :
30-50m/s, Can Customized as Buyer's Requirements
Tower Type :
Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Pressure :
0.3-1.2KN/M²
Work Platform :
Height and Quantity up to clients
Connection Type :
Nuts & Bolts
Place of Original :
Guangzhou
Description

Hot-dip Galvanized 5G Signal Microwave WIFI 4 Legged Angle Steel Tower

Self supporting tower usually is 3-leg of 4-leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.

Features:

1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

Specification:

Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

5G Signal Microwave WIFI 4 Legged Angle Steel Tower Hot Dip Galvanized

Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.
