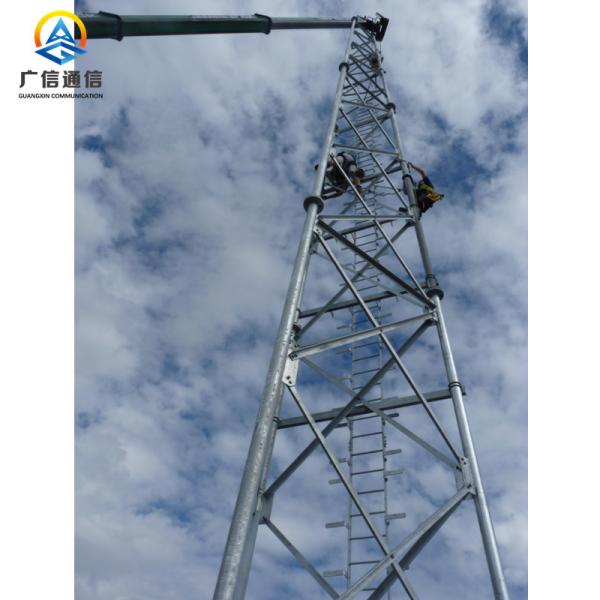

5 Section Communication Telescoping Antenna Tower Extend Height 20M
5 Section Communication Telescoping Antenna Tower Extend Height 20M
5 Section Communication Telescoping Antenna Tower Extend Height 20M
5 Section Communication Telescoping Antenna Tower Extend Height 20M
Specifications
Brand Name :
Guangxin
Model Number :
GX-5669G
Certification :
ISO9001:2008 SGS COC
Place of Origin :
Guangzhou
MOQ :
1set
Price :
USD1880-2100
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
300ton/month
Delivery Time :
20-30days
Packaging Details :
Cotton sheets or cloth package by bundle
Product Name :
Communication Telescopic Tower
Steel Structure :
HDG Lattice Steel Tower
Material :
EN10025: S355JR, S355J0,S355J2
Braces :
GB/T 700:Q235B
Tower Type :
Self Supporting Angular / Tubular
Design Wind Speed :
35/210kph
Design of pole :
Against earthquake of 8 grade
Allowable deflection :
0.5 ~1.0 degree @ operational speed
Connection Type :
Parts for connection or installation will be provided
Impact strength KV (J) :
27(20°C)---Q345B(S355JR)
Method :
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Galvanization standard of steel sections :
ISO 1461 or ASTM A123
Yield strength :
355 MPa
Bolts :
DIN7990, DIN931, DIN933
Description

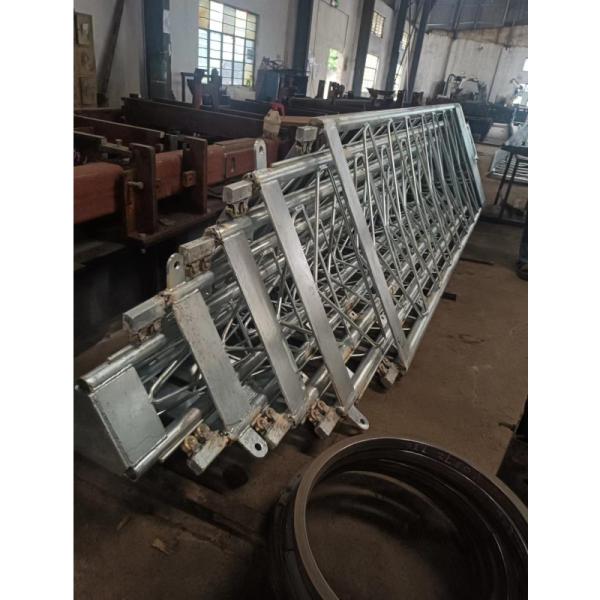

5 Section Communication Antenna Telescopic Tower Extend Height 20M

Telescopic tower specification:

1. It is 5 sections and each section 3-4m height.

2. Extract height 5-6m and extend height 20m.

3. with 3 triangle tube, material is Q235B low carbon.

4. The angle steel communication tower is the most common tower type and is generally applied to telescopic tower. The main material and the abdominal rod are mainly made of angle steel. It is easy to install, economical and applicable. It should be the first choice for the construction of iron towers.

5. Its main material is mainly made of steel pipe, because its root can be made very small, suitable for narrow sites or near the building, but the cost is higher than the angle steel Lattice tower.

6. Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project.

Specification of Telescopic Tower Accessories:

Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

5 Section Communication Telescoping Antenna Tower Extend Height 20M
