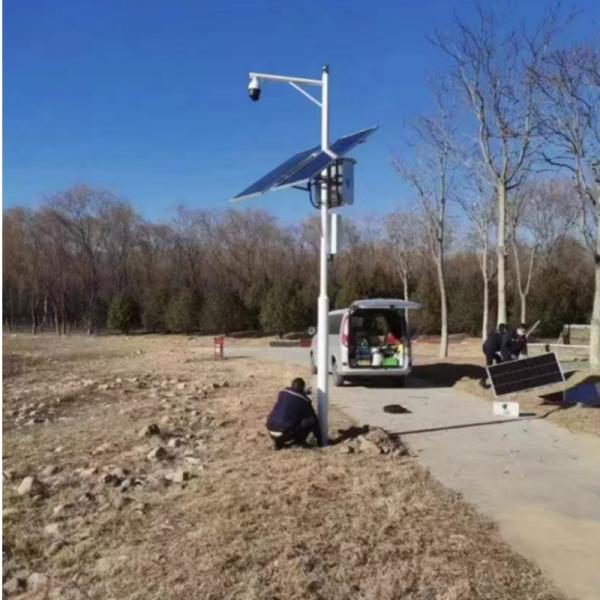

3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera
3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera
3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera
3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera
Specifications
Brand Name :
GUANGXIN
Model Number :
CSP-015
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
2
Price :
USD99-180 per piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
20-30 days
Packaging Details :
Packing: Carton, foam film, cling film,transparent adhesive
Name :
6m Galvanized Steel Pole With Traffic Signal Solar Panel
Material :
Weldable Structural Carbon Steel Plates or pipes
Surface Finish :
Hot dip galvanization plus powder coating(optional)
Arms :
1 or 2 or customized to request
Height :
8m or customized to requests
Applications :
Traffic monitor, public security CCTV, parking lotsurveillance etc.
Payment Term :
T/T or L/C
Pole Shape :
conical, tapered, octangular, polygonal, round etc.
Description

3m 4m 5m 6m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera

Feature:

Material: Usually Q235/A36, minimum yield strength ≥ 235n/mm²

Mounting Height: 3m -15m

Shape Of Pole: Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal

Thickness: 3mm ~ 10mm

Base Plate Mounted: Square or round in shape with slotted holes for anchor bolt and dimension

Ground Mounted: The length buried underground

Surface Treatment: Hot-Dip galvanized following ASTM A123

Color polyester power or any other standard by client required.

Usage: Highway / Roadway / Residential subdivisions / Commercial development

Specifications:

Descriptions Steel poles and cantilever for mounting street lights, CCTV camera, traffic signs and signal lights, LED screen etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.
