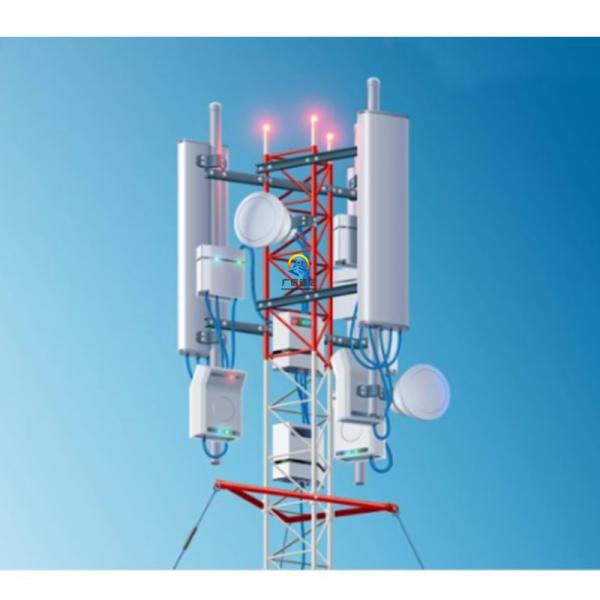

Small Triangle Telecom Tower FM Transmitting Radio Antenna
Small Triangle Telecom Tower FM Transmitting Radio Antenna
Specifications
Brand Name :
Guangxin
Model Number :
GX-5631G
Certification :
ISO9001
Place of Origin :
Guangzhou
MOQ :
1set
Price :
USD1880-2100
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
300ton/month
Delivery Time :
20-30days
Packaging Details :
Cotton sheets or cloth package by bundle
Product Name :
Radio Antenna Small Triangle Telecom Tower
Material :
Q235B or Q355B
Hot-dip Galvanization :
ISO 1461 2009, ASTM A123
Design Wind Pressure :
0.3-1.2KN/M²
Work Platform :
1-3 platform
Connection Type :
Nuts & Bolts
Tower Type :
Tubular Tower / Angular Tower
Design Wind Speed :
30-50m/s, Can Customized as Buyer's Requirements
Design of pole :
Against earthquake of 8 grade
Shipping Port :
Huangpu or Yantian/Shekou
Description

FM Transmitting Radio Antenna Small Triangle Telecom Tower

Our Specifications of Network Internet Tower :

✓ The most common heights manufactured are between 10m to 110m but may extend beyond that depending on the requirement.
✓ Design wind speed : Between 120 to 220 km/h
✓ Antenna Deflection Limit : Between 0.5 to 2 degree
✓ Structural steel design is calculated according most recent International Standard (EIA, Eurocode, NV65, BS)
✓ Materials specification will be:

• High Tensile Steel is according to EN10025. S355J0 or equivalent steel is according to EN10025. S235JR (equivalent to 43B), ASTM A36 grade 36 or equivalent.
• Bolts are according to DIN931 and 931.
• All structure Components are hot dip galvanized according to EN ISO 1461.
• Anchor bolts are according to DIN 976.

Specification of Network Internet Tower:

Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Optional accessories :

✓ Antenna brackets
✓ Safety cage
✓ Life line system
✓ Anti intrusion door
✓ Grounding and Lightning protection
✓ Obstruction light
✓ Markup / Painting
✓ Horizontal cable tray

For new request, please send us complete specifications (Height, Wind load, Deflection, Antenna load, Standard, etc..) with accessories requested (feel free to indicate the quantity for each)
