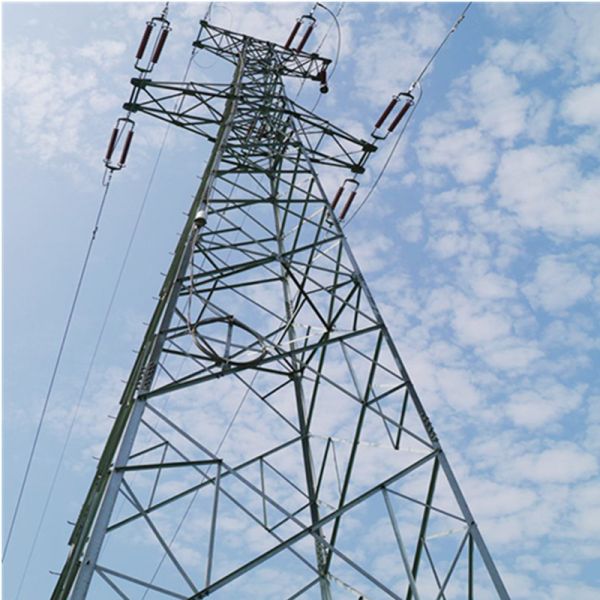

10kv-220kv Transmission Line Towers Lattice Steel Tower
10kv-220kv Transmission Line Towers Lattice Steel Tower
Specifications
Brand Name :
Guangxin
Model Number :
GX-3301
Certification :
ISO9001:2008 SGS COC
Place of Origin :
Guangzhou, China
MOQ :
1unit
Price :
USD1200-USD1350 per ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800Ton/Month
Delivery Time :
30-40 days
Packaging Details :
wooden pallet and plastic bubble sheets
Steel Structure :
Lattice Power Transmission Tower
Design Wind Speed :
Up to 250 km/h
Tension strength (Mpa) :
360~510
Allowable deflection :
0.5 ~1.0 degree @ operational speed
Bolts :
DIN7990, DIN931, DIN933
Nuts :
ISO4032, ISO4034
Washers :
DIN7989, DIN127B, ISO7091
Description

In tower shape ,we have type as follow:

(1) horizontal configuration

(2) vertical configuration

(3) delta configuration

(4) Self-supproted delta structure

(5) H-Fram structure

(6) Guyed-vice structure

(7) Monopole type

10kv-220kv Transmission Line Towers Lattice Steel Tower High Tension Electrical Galvanized

Material

Steel pipes, Angle steel plates, flat steel plates, bolts and nuts distribution tower
Steel Type

Weldable low carbon structural steel
Steel Grade

GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength

Fy≥235MPa
Tensile Strength

Fu≥400MPa
Elongation

σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height

20m to 100m, customized to requests
Design

4 legs self-supporting or free standing lattice tower
Structure

Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode

CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening

Bolts and nuts, connecting plates
Configuration

Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load

0.35-1.0kN/sqm
Lifespan

20-50 years
Warranty

3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Transmission line poles and towers

Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and other accessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground or across objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower, straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.
