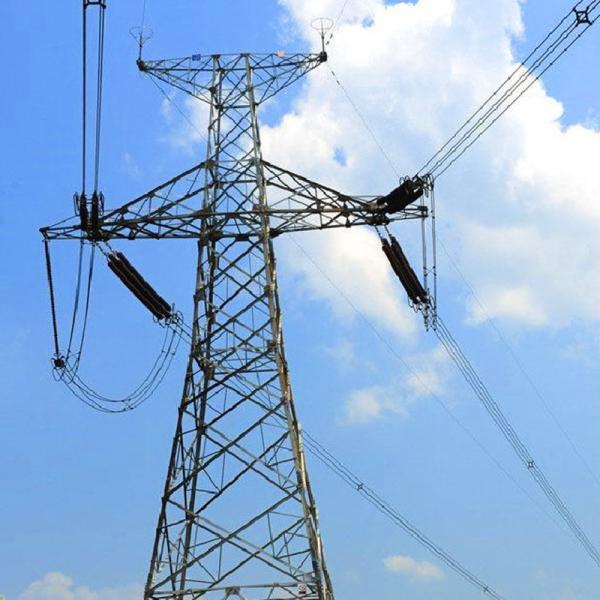

ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
Specifications
Brand Name :
Guangxin
Model Number :
GX-1102
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1unit
Price :
USD1200-USD1350 per ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Ton/Month
Delivery Time :
25-35days
Packaging Details :
wooden pallet and plastic bubble sheets
Steel Structure :
Lattice Tower
Design Wind Speed :
Up to 250 km/h
Tension strength (Mpa) :
360~510
Grade of bolts and Nuts :
Grade 4.8, 6.8, 8.8
Maximum Production Capacity :
50,000 TON per annum
Material :
Q235B or Q345B
Welding Method :
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Allowable deflection :
0.5 ~1.0 degree @ operational speed
Description

ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height

Description:

Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts distribution tower
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height

Electric Power Transmission Tower by their shapes is generally divided into the following types: glass type, cat head type, fonts on type, dry fonts type,bucket type, etc. By the uses, it can be divided into: tension tower, straight line tower, angle tower, terminal tower, etc.

Steel Tower Model: Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower.

Welding:

1.Welding complies with AWS D1.1 standard.

2. CO2 welding or submerged arc auto methods.

3. No fissure, scar, overlap, layer or other defects
4. Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment as your request
