Specifications
Brand Name :
Saibo
Model Number :
YX14-74-888
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
300 sets per year
Delivery Time :
70 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
Wall Panel Roll Forming Machine
Power :
5.5KW+4kw
Size Of purlin :
YX14-74-888
Steel thickness :
0.3-0.8mm
Decoiler :
Manual or hydraulic
Station :
18 stations
Roller material :
ASTM1045 chrome plated surface with chrome
Size of line :
About 7.5mx2.1x1.6m
Drive :
By chain
Drive By chain Container need :
1X40GP
Description

Manual Decoiler Wall Panel Roll Forming Machine 5.5kw Motor Power YX14-74-888

YX14-74-888 Wall Panel Roll forming machine

1. Specification of the material

1

 Suitable Material Colored Steel plate, Galvanized steel

2

 Width of the raw material 1250mm
3 Thickness 0.3mm-0.8mm

2. Machine Detailed Parameters

1 Roll Forming Machine YX14-74-888
Machine structure Wall panel structure
2 Total power

Motor power-5.5kw

Hydraulic power-4kw
3 Roller stations About 18 stations
4 Productivity 0-15m/min
5 Drive system By chain
6 Diameter of shaft ￠70mm solid shaft

7

 Voltage 380V 50Hz 3phases (Customized)
Color Of The Machine Yellow and blue

8

 Container need 40GP container
Deliver Time 70 days
Terms Of Payment 30%T/T 70% pay before shipment

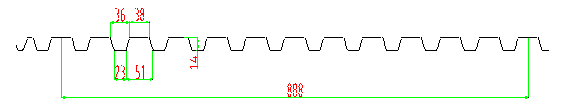

3. Profile drawing

Manual Decoiler Roof Panel Roll Forming Machine 5.5kw Motor Power YX14-74-888

4. The Chart of Process Flow

Manual Decoiler Roof Panel Roll Forming Machine 5.5kw Motor Power YX14-74-888

5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall panel

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
