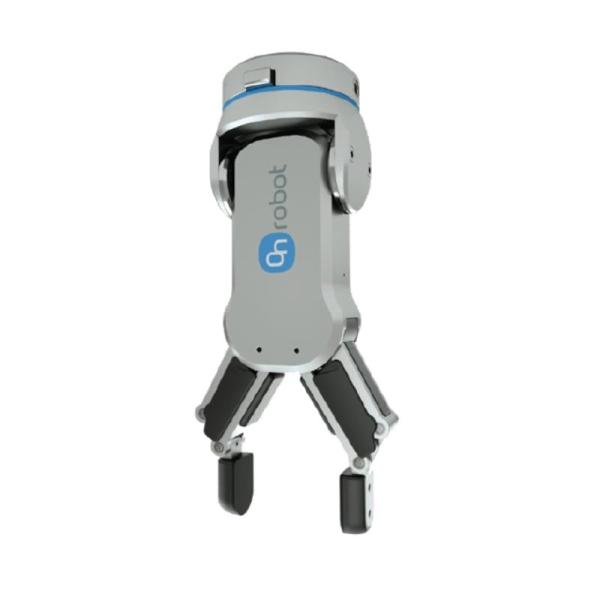

Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Specifications
Place of Origin :
Denmark
Brand Name :
Onrobot
Packaging Details :
Regular packing ,100% Factory Sealed.
Price :
Negotiable
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food Shop, Energy & Mining, Food & Beverage Shops
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Horizonal Travel(mm) :
110mm
Weight :
0.78kg, 0.78
Dimension(L*W*H) :
213X149X36MM
Warranty :
1 Year
Product Name :
Onrobot RG2 Flexible 2 Finger Pneumatic Robot Gripper
Payload Force Fit :
2 KG
Payload Form Fit :
5 KG
Finger position resolution :
0.1
Repetition accuracy :
0.1-0.2
Reversing backlash :
0.1-0.3
Gripping force (adjustable) :
3-40N
Gripping speed :
38-127 mm/s
Dimensions :
213 x 149 x 36
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia
After-sales Service Provided :
Online support
Description
Product Description
Onrobot RG2 Flexible 2 Finger Pneumatic Robot Gripper with wide stroke for UR, han's Elfin, Aubo Collaborative robot, with online service support and very competitive price
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Payload Force Fit
2kg/5kg
Total stroke
110mm
Repetition accuracy
0.1-0.2mm
Gripping speed
38-127 mm/s
Dimensions
213 x 149 x 36
Weight
0.78
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 2 Finger robot gripper Introduction
1. Flexible grippers can be used for a wide range of part sizes and shapes;
2. Plug-and-produce design reduces deployment time from a day to an hour;
3. Easy deployment with out-of-the box grippers reduces programming time by 70%

  • Why Onrobot RG2 Robot Gripper?

The RG2 - 2kg payload robot arm gripper is a flexible collaborative gripper with built-in Quick Changer up to 110mm stroke. It provides intelligence, fast deployment, easy customization and programming. The outstanding software features through our one system solution decreasing engineering and manufacturing time significantly. The RG2 gripper is a tool for wide range of applications. Customized fingertips provide great gripping flexibility, customers can use one tool for different parts of the production process maximizing robot utilization. The RG2 works seamlessly with our Dual Quick Changer and any of our other grippers to help you maximize utilization of your robots. RG2 is TÜV certified, comes standard with safety shields.
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Detailed Images
The RG2’s advantages and features
The RG2 gripper can be combined with the Dual Quick Changer module. The Dual Quick Changer operates with the same principles as the Quick Changer module. However, the Dual Quick Changer is designed to enable the use of two end-of-arm tooling grippers (EoAT) at the same time, allowing, e.g., a RG2 gripper and a RG6 gripper to be used simultaneously. Our unique robot end-of-arm tooling gripper helps you maximize the use of your robots. With the Dual Quick Changer installed, production time is reduced, because more work pieces are being handled simultaneously. Overall, the Dual Quick Changer will approximately increase production efficiency by 50%.
LARGE STROKE Automatically detects the stroke at program start without initialization. The maximum grip stroke of the RG2 is 110 mm (adjustable). 1. GRIP INDICATIONS Automatic "lost grip detection", "grip detected", "continuous grip" and "measure width" detections remove the need for manually programming these features. 2. CUSTOMIZABLE FINGERTIPS The fingertips of the gripper can be easily customized, fitting the product shape for stable gripping. 3. AUTOMATIC TOOL CENTER POINT CALCULATION (TCP) Automatic calculation of TCP eliminates the need for extensive programming in addition to reducing the deployment time. 4. AUTOMATIC PAYLOAD CALCULATION Automatic payload calculations simplify the programming of the RG2 gripper. 5. AUTOMATIC DEPTH COMPENSATION Automatic depth compensation ensures the gripper’s fingers sweep in parallel across work surfaces. 6. INTEGRATED SOFTWARE The gripper comes with pre-integrated software that is easy to install and program, so even employees with no technical background can set it up. 7. TÜV CERTIFIED Both the RG2 gripper and the RG6 gripper are TÜV certified.
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
After Sales Service
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Company Introduction
Xiangjing(Shanghai) M＆E Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing industrial robot, its units and related accessories including robot gripper, welding torch, welding source and so on.
we can provide Welding Robot, Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation
industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 20 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses.
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper
Onrobot RG2 Collaborative Robot Arm Flexible 2 Finger Pneumatic Robot Gripper

Our Services & Strength

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
