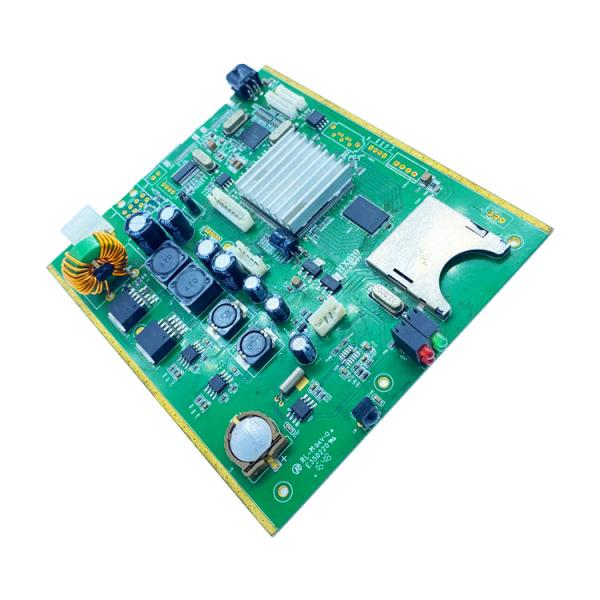

OEM HDI Pcb 6 Layer PCB Printed Circuit Board
CKS was founded in 2010, located in Shenzhen. We mainly offer High quality PCB fabricate, components purchase and assembly PCB(OEM PCB Assembly Service). From our ISO9001:2008 certified factory, we turn out up to 10000 square meter of PCBs and 400000 PCBAs monthly. For assembly, utilizing 8 high-speed SMT lines from Yamaha and Sony, to meet customers' need.
Quick Details
- Model Number:
-
CKS
- Place of Origin:
-
Guangdong, China
- Supplier Type:
-
One stop turnkey service
- Standard:
-
IPC-A-610D
- PCBA Warranty:
-
1 year
- Certificates:
-
ISO9001:2015, CE, ROHS
- Copper Thickness:
-
1/2OZ 1OZ 2OZ 3OZ
- Min. Hole Size:
-
0.25mm
- Min. Line Spacing:
-
0.1mm(4mil)
- Min. Line Width:
-
0.1mm(4mil)
- Base Material:
-
FR4, AL, FPCB
- Board Thickness:
-
0.4-4.0mm
- Surface Finishing:
-
HASL, ENIG
Product Name | PCBA customize |
Surface Finishing | Gold Plating |
Certificate | ROHS. ISO9001. |
Pcb board material | Fr4 / Aluminum / Cu |
Copper Thickness | 0.5-3OZ |
Board Thickness | 0.8-2.0mm |
Testing Service | Fly-probe/AOI/100%function Testing |
PCB layer | SMT DIP Electronic Board |
FR-4 Process capability |
NO | Item | Craft Ability |
1 | Surface Finish | HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc |
2 | Layer | 1-32 layers |
3 | Min.Line Width | 4mil |
4 | Min.Line Space | 4mil |
5 | Min.Space between Pad to Pad | 3mil |
6 | Min.Hole Diameter | 0.20mm |
7 | Min.Bonding Pad Diameter | 0.20mm |
8 | Max.Proportion of Drilling Hole and Board Thickness | 1:10 |
9 | Max.Size of Finish Board | 23inch*35inch |
10 | Rang of Finish Board′s Thickness | 0.21-3.2mm |
| | |
