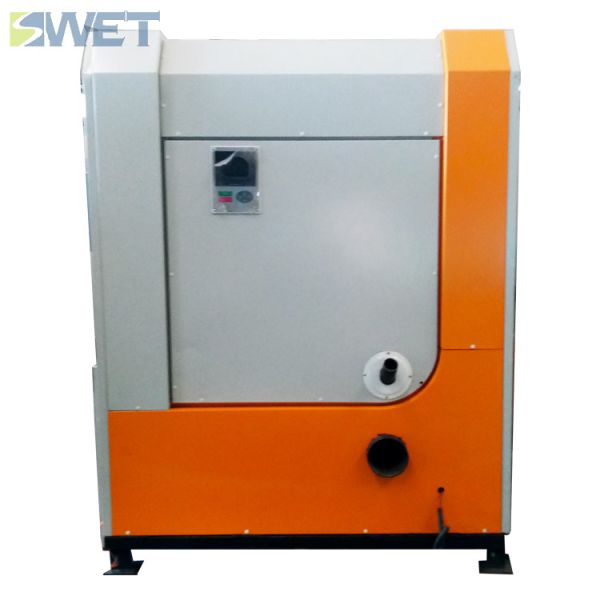

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H
Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H
Specifications
Brand Name :
SWET
Model Number :
YDZ0.1-0.7
Certification :
ISO9001
Place of Origin :
HENAN,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 SETS PER YEAR
Delivery Time :
10 WORKING DAY
Packaging Details :
The 500kg steam generator bady with plywood packaging.
Design fuel :
gas/oil
Thermal efficiency :
over 92%
Rated evaporation (kg/h) :
100
Rated steam temperature(℃) :
170
Rated steam pressure(Mpa) :
0.7
Output :
Steam
Pressure :
Low Pressure(1.25MPa),Others
Structure :
Fire Tube,Water Tube,water-fire tube
Application :
Industrial Production,Machinery Industry,Hospital,chemical industry,Food Factory
Working pressure :
0---1.5Mpa,low pressure/high pressure
Steam temperature :
170-204℃,194 ℃,184-225 degree,≤194℃
Description

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H

1. The steam generator fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.

2. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

3. Full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient. Built-in steam separator solves the problem of steam with water to ensure the quality of the steam.

4. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.

Gas steam generator technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight Full load biomass consuption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN Kpa DN mm mm mm T Nm³/h
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.6 6.5(NG)
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.5 8.4(NG)
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3 22.3(NG)
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8 30.5(NG)
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2100 3 37.9(NG)
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2 46.9(NG)

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H

Environmental Protection Fire Tube Oil Gas Boiler DN15 100kg/H
