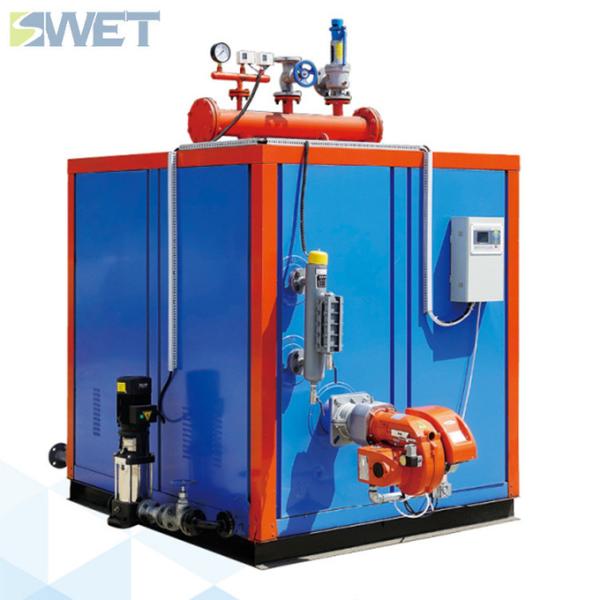

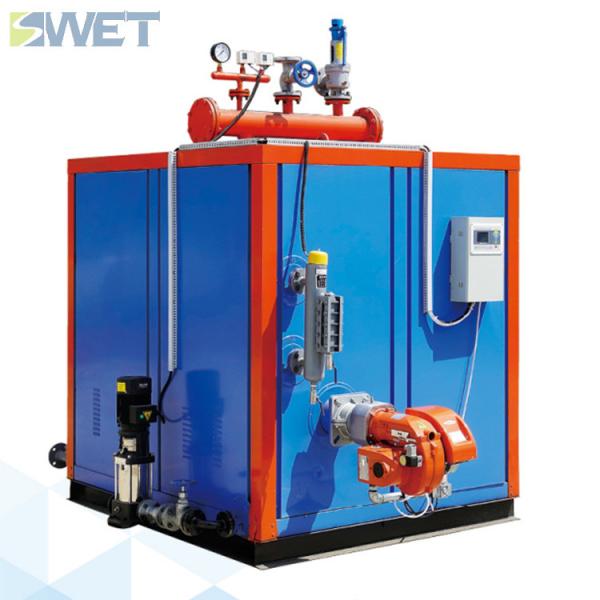

Natural Gas Steam Boiler Efficiency More Than 93% 500kg 16.5sqm
Natural Gas Steam Boiler Efficiency More Than 93% 500kg 16.5sqm
Specifications
Brand Name :
Swet
Model Number :
ZFQ0.5-0.7-Q
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
500kg/h
Rated pressure :
0.7Mpa
Rated steam temperature :
170℃
Thermal efficiency :
more than 93%
Heat transfer area :
16.5sqm
Fuel consumtiion :
37.3stere per hour
Power consumption :
1.3KW
Approx weight :
1600*1450*2500mm
Description

More than 93% 500kg natural gas steam boiler efficiency

Full automatic control. Equipped with original combustion equipment, the work is stable and reliable, the internal structure is combined with the design of tubes, the heating area is large, the heating is uniform, the steam quality is good, the steam pure temperature is high, and the application range is wide.
Natural Gas Steam Boiler Efficiency More Than 93% 500kg 16.5sqm
Technical parameters
Item ZFQ0.5-0.5-Q
Rated evaporation Kg/h 100
Rated pressure Mpa 0.7
Rated steam temperature ℃ 170
Design thermal efficiency % ≥93
Heat transfer area m² 16.5
Fuel consumtiion m³/h 37.3
Power consumption kw 1.3
Design fuel - natural gas
Applicable fuel - city gas, LPG, LNG, diesel
Approx dimensions L mm 1600
W mm 1450
H mm 2500
Approx shipping weight T 2
Full load gas consumption m³/h 37.3
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Our Customer Visit
Any Question, Please contact us freely !
Product tags

natural gas steam boiler efficiency

,

gas boiler efficiency

,

gas steam boiler high efficiency
