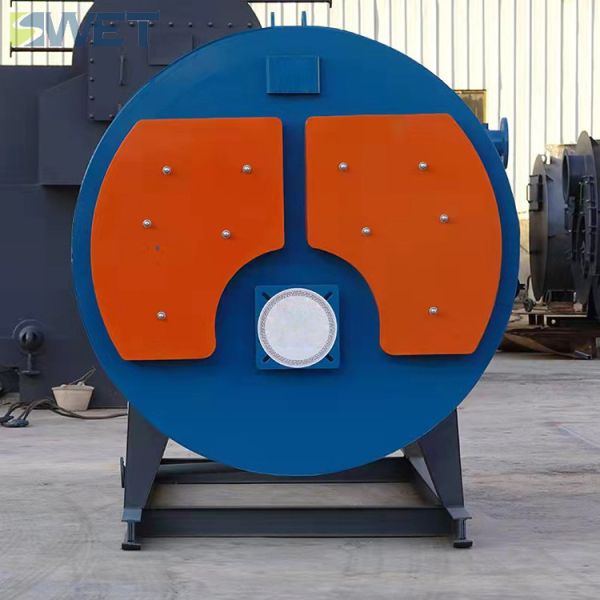

95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
Specifications
Brand Name :
Swet
Model Number :
WNS2-YQ
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Boiler capacity :
2 tons per hour
Working pressure :
1.0Mpa
Steam temperature :
184 degrees c
Style :
Horizontal
Fuel :
natural gas
Output :
Steam
Description

95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg

Our WNS series steam boiler adopts horizontal three-pass wet-back structure, The use of advanced wave type furnace structure increased the heat transfer area and satisfy the free expansion after the furnace is heated.
Our steam boiler also has high thermal effiency and stable output, has strong adaptability to load.
Our steam boiler design the protection function of super temperature, overpressure,water shortage,leak detection,fire extinction,this guarantee the safety of operation. The design of back sight device is convinent for observation.
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Warranty of core components 12 months
Steam Production 2 ton per hour
Place of Origin Henan, China
Warranty 12 months
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure 0.5-2.0MPa
Style Horizontal
Fuel Natural gas, City gas, Diesel, Light oil, Heavy oiletc
Brand Name SWET
Output Steam
Fuel Type Heating, chemical, food, tobacco, textile
Operation Fully Automatic Control
Manufacturer More than 60 years
Packaging Details Boiler body part is in nude packing with protection film outside.
Accessories are in export-use wooden box.
95% Heating Efficiency Energy Saving Steam Boiler Natural Cycle Dual Fuel 2000kg
Technical Parameters
Model WNS2-1.0-YQ
Rated capacity (t/h) 2
Rated working pressure (Mpa) 1.0
Rated steam temperature (°C) 184
Design thermal efficiency (%) 95
Feed water temperature (°C) 20
Fuel consumption (m³/h) 157
Applicable fuel natural gas
Applicable power supply (AC) 380V 50HZ
Approx weight (kg/h) 8060
Approx shipping size (mm) 4300*1900*2400
Production Process
Our engineering case
Our company
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler. China's first circulating fluidized bed boiler was born in our factory.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
Other Products:
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Any Question, Please contact us ,we serve you 24 hours !
