Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
Specifications
Brand Name :
SWET
Model Number :
LSS0.5-0.7-S
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
The steam boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
500kg/h
Weight :
1.2T
preset pressure :
0.7mpa
Rated steam temperature :
170℃
Thermal efficiency :
87%
Color :
Customer's Requirement
Design fuel :
biomass
Warranty :
12months
Usage :
Industrial,Steam Outputing
Type :
Natural Circulation,Once Through /Auxiliary Cycle
Fuel :
Oil,Gas,Oil/Gas-fired
Style :
Horizontal,Vertical,horizontal and vertical
Condition :
New
Output :
Steam
Pressure :
Low Pressure,High Pressure
Structure :
Fire Tube,Water Tube
Application :
Industrial Production,Machinery Industry,Hospital,chemical industry,Food Factory
Name :
Industry Fire Tube Boiler,gas heating boilers,Electric Steam Boiler
Steam temperature :
170-204℃,≤194℃
Description

Good quality 200kg industrial wood pellet steam boiler for pharmaceutical industry

Product Description

1. In the design structure, compared with the traditional boiler furnace space, and the very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.

2.The boiler safety is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized

The 200kg industrial wood pellet steam boiler production process:

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized

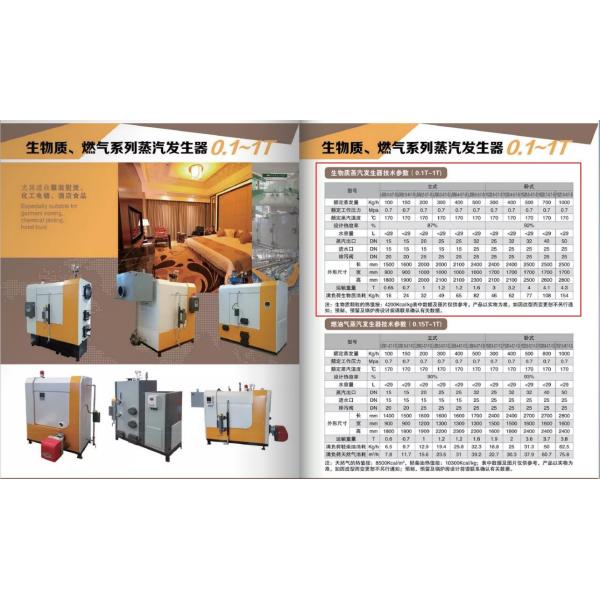

200kg industrial wood pellet steam boiler technical parameters:

Fuel Cost analysis(Take 100 kg per hour as an example)
Equipment selection Steam volume Energy consumption Unit Price Operating costs
Electrothermal steam boiler 100kg 72 kw/h 0.08 USD/kw 10.91 USD
Fuel steam boiler 100kg 7 kg/h 0.53 USD/kg 7.42 USD
Gas steam boiler 100kg 8 m³/h natural gas 0.34 USD/m³ 5.45 USD
Biomass steam boiler 100kg 20 kg/h wood pellet 0.08 USD/kg 3.03 USD

Packaging & Shipping

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized

FAQ

Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Biomass Wood Pellet Steam Boiler For Pharmaceutical Industry Color Customized
