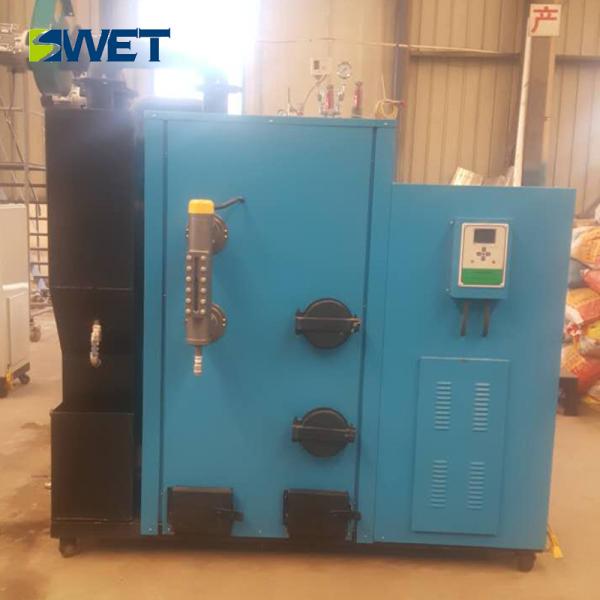

200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed
200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed
200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed
200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed
Specifications
Brand Name :
SWET
Model Number :
LSS0.2-0.7-S
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
The steam boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
200kg/h
Weight :
1.2T
preset pressure :
0.7mpa
Rated steam temperature :
170℃
Thermal efficiency :
87%
Color :
Customer's Requirement
Design fuel :
biomass
Warranty :
12months
Description

Quick loading 200kg vertical fuel rice husk pasteurization steam boiler

Product Description

1. Advanced steam boiler automatic controller, LCD screen, man-machine interface, users only need to set easily, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other fully automatic operation. The boiler has complete functions, complete protection, simple operation, safe and reliable, and self-diagnosis function. Once an abnormal phenomenon occurs in the boiler operation, the combustion is automatically interrupted, and an audible and visual alarm is issued.

2. In the design structure, compared with the traditional boiler furnace space, and the very reasonable secondary air arrangement, it is beneficial to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.

200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed

200kg vertical fuel rice husk pasteurization steam boiler core advantages:

1. Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.

2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application

product parameters

200kg vertical fuel rice husk pasteurization steam boiler technical parameters:

Biomass steam boiler technical
Rated evaporation Rated pressure

Rated steam tempe

rature

Feed water temper

ature

 Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN mm mm mm T Kg/h
200 0.7 170℃ 20℃ 87% 28 25 15 25 2000 1400 2700 1.35 49.3
600 0.7 170℃ 20℃ 93% 29 32 15 25 2500 1800 2500 4.1 76.8
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

Packaging & Shipping

200kg Vertical Fuel Rice Husk Pasteurization Industrial Steam Boiler Quick Loading ISO9001 Listed

FAQ

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
