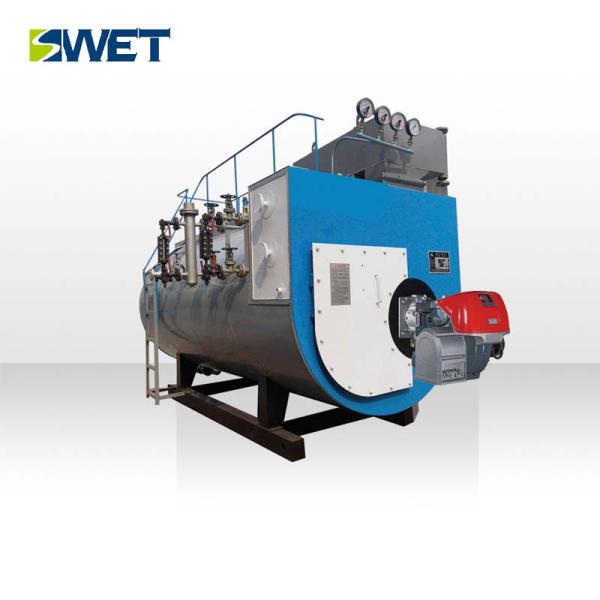

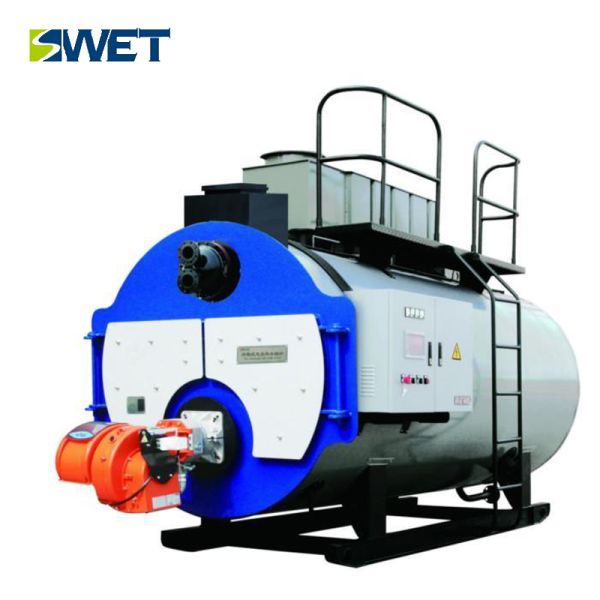

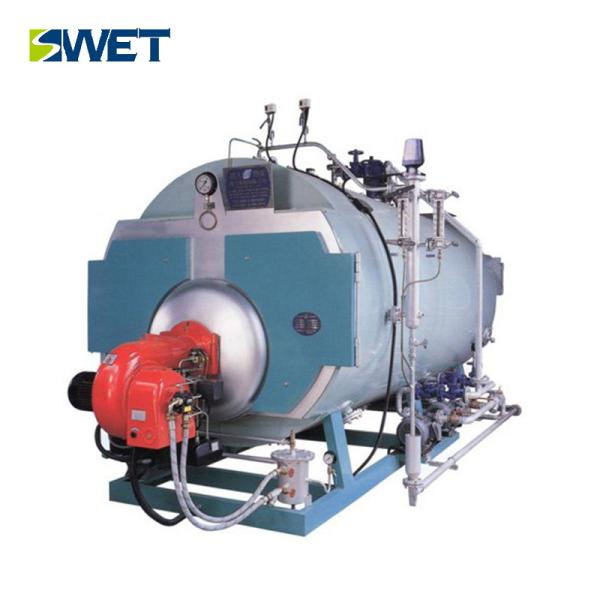

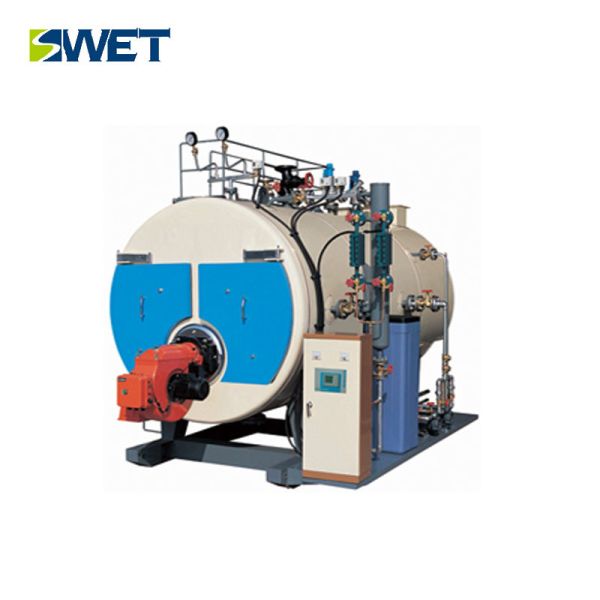

Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
6t / h
Rated working pressure :
1.0/1.25/1.6 MPa
Rated steam temperature :
184/194/204 ℃
Feed water temperature :
20 ℃
Keywords :
gas steam boiler
Model :
WNS
Testing efficiency :
96.48 %
Color :
Customer requirements
Description

Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry

Our product advantages and features:

(1) It has perfect automatic control device and safety protection device, high and low water level alarm and low water level chain protection function.

(2) Automatic ignition of boiler, automatic adjustment of burner firepower and flameout protection to ensure safe operation of boiler.

Product Data

Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry

WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Gas consumption Outline dimension
Unit t/h Mpa ℃ ℃ % Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1407.5 8660*3520*4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1459 8870*3550*3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/197/204 105 97.2 1126 7450*3520*4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 837.25 6370*2812*3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 96.7 659.25 6000*2920*3403
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 433.51 5470*2770*3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 96.48 409.33 5160*2410*3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 334.23 4880*2710*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 245.12 4762*2447*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 163.72 4030*2010*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output
Welcome to contact us
Production Process

Welcome to contact us

Packaging & Shipping

Low Pressure 6t / H Oil Fired Steam Boiler 1.0 Mpa 1.25 Mpa 1.6 Mpa For Paper Industry

Product packaging

(1) Industrial steam boiler package.

(2) In all boiler attachments or plywood wooden boxes.

FAQ

Q: how do you choose the boiler model?

A: identify the type of Boiler, steam or hot water), capacity, working pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel), Swet Boiler will be according to your usage suggest suitable model.

Q: how about the warranty period?

A: if there is any quality problem during the warranty period, the seller will repair or replace the damaged parts free of charge. If the customer has any problem, the seller will provide the spare parts at the lowest cost.
