Specifications
Brand Name :
SWET
Model Number :
SZL30-2.5-T-0028
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :
The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
30t/h
Working pressure :
2.5MPa
Return water temperature :
104℃
Keywords :
Steam boiler
Steam temperature :
224℃
Boiler dimensions :
13000x7100x9500mm
Exhaust temperature :
460℃
Thermal efficiency :
85%
Description

SZL Series Multifunctional Portable Steam Boiler Biomass Particle Combustion

Product Description

1. Boilers use the most suitable combustion of biomass fuel combustion equipment ---- reciprocating grate.

2. Boiler in structural design, the relatively large space of the traditional boiler furnace, at the same time the layout of a very reasonable secondary air, is conducive to the combustion of biomass fuel instantaneous precipitation of large amounts of volatile combustion.

3. The use of efficient insulation material, the boiler surface temperature is low, heat loss can be neglected. Strictly according to China's national norms and standards of production, all the pressure parts are made of high quality boiler steel. Each boiler is subject to rigorous testing and testing before it leaves the factory, including hydrostatic testing and X-ray inspection. Set a manhole, check the door, viewing fire holes, maintenance is very convenient.

Product Features

1. The most prominent feature of biomass boiler is: energy saving, environmental protection, and easy to install and use.

2. Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment.

3. Furnace with heat resistant concrete whole pouring efficient energy-saving furnace arch, improved coal fire conditions, the use of independent air chamber, to achieve a reasonable distribution of wind, the combustion chamber to form a combustion-friendly aerodynamic field, thereby expanding the coal adaptability.

Technical Parameters

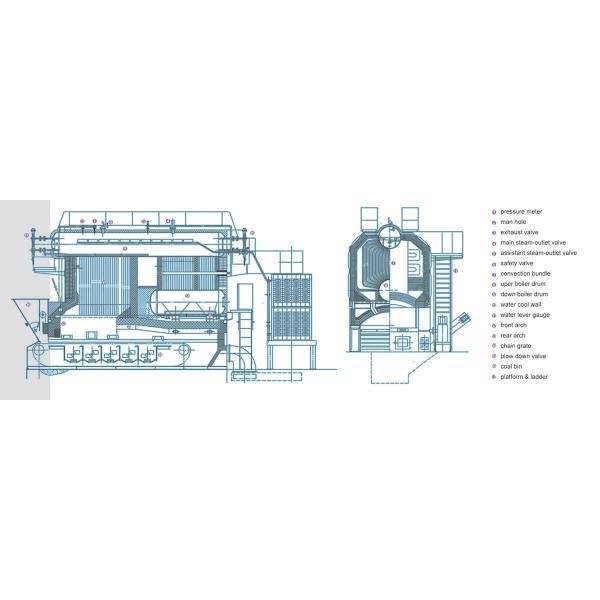

Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

℃

℃

℃

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
