Specifications
Brand Name :
SWET
Model Number :
SZL25-2.5-T-31
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :

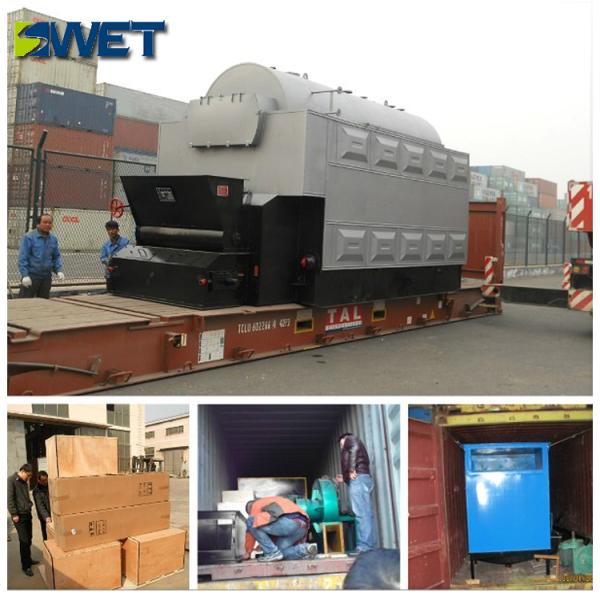

The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
20t/h
Working pressure :
2.5MPa
Return water temperature :
104℃
Keywords :
Steam boiler
Steam temperature :
224℃
Fuel :
Biomass wood chips
Color :
Based on customer's needs
Thermal efficiency :
81%
Description

25T Szl Automatic Feeding Biomass Wood Chip Pellet Waste Sawdust Steam Boiler

Product Description


1. Boiler capacity:1-20ton/h

2. Steam temperature output:184C,194C,204C,225C

3. Suitale fuel: biomass, wood pellet,peanut, paddy, rice husk, solid fuel,etc

4. Structure: water tube, big cyclone room

5. Application:industrial production and processing

Boiler advantages

1. The hearth is designed with a cyclone reburning chamber, which makes the boiler energy saving, high combustion efficiency and environmental friendly.

2. Special air distribution design.

3. The hearth has large volume and strong fuel adaptability, it can use various biomasses as the fuel.The big size furnace can be well adapted to biomass's feature of high flame.

Technical Parameters

Boiler type and parameter list of double boiler barrel series chain grate boiler
Boiler model Rated evaporation Working pressure Steam temperature Water supply temperature Exhaust temperature Thermal efficiency Boiler dimensions
Unit t/h Mpa ℃ ℃ ℃ % mm
SZL10-1.25-T 10 0.7/1.0/1.25 170/184/194 20

150 ≥80 8830x3180x5730
SZL15-1.6-T 15 1.0/1.25/1.6 184/194/204 104 155 ≥80 14000x4174x614
SZL20-1.6-T 20 1.0/1.25/1.6 184/194/204 104 155 ≥80 15820x4620x8680
SZL25-2.5-T 25 1.25/1.6/2.5 194/204/224 104 160 ≥80 12800x6000x8420
SZL30-2.5-T 30 1.25/1.6/2.5 194/204/224 104 160 ≥80 13000x7100x9500
SZL35-2.5-T 35 1.25/1.6/2.5 194/204/224 104 160 ≥80 3000x7600x9800
