Specifications
Brand Name :
SWET
Model Number :
SZL25-2.5-T-23
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :
The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
20t/h
Working pressure :
2.5MPa
Return water temperature :
104℃
Keywords :
Chain grate boiler
Steam temperature :
224℃
Fuel :
Biomass
Color :
Based on customer's needs
Boiler dimensions :
15820x4620x8680mm
Type :
Natural Circulation
Style :
Horizontal,Vertical
Application :
Industrial Production,wood industry,Textile Mill
Description

2.5MPa Double Drum Longitudinal Type Industrial Chain Grate Boiler For Heating And Energy Saving

Product Description

1. Double drum, vertical set, slightly positive pressure chamber burning water tube steam boiler known as the SZS series, the export medium for low pressure, sub-medium pressure, superheated steam / saturated steam, to meet the needs of industrial heating gas can also Meet the needs of small and medium power plants.

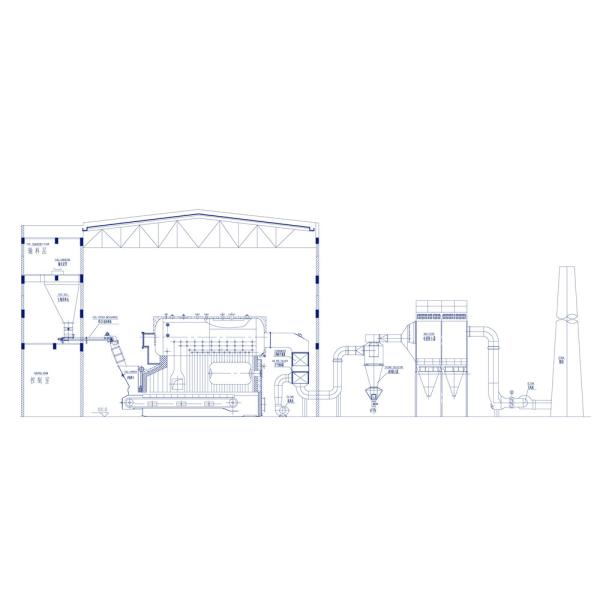

2. The boiler adopts D-type arrangement, the upper and lower drums are longitudinally arranged, the flue gas flow wall is membrane-type (close-packed) water-cooled pipe wall, the left side of the boiler is convection pipe bundle, the boiler with superheater, Arrangement in the furnace exit corner area. In order to improve the thermal efficiency of the boiler, a series of energy-saving devices are arranged on the tail to save energy to the maximum.

3. Boiler combustion device arranged in the front of the boiler, easy operation and maintenance. The series boilers are assembled appearance, easy installation, investment in the boiler room province

Technical Parameters

Boiler type and parameter list of double boiler barrel series chain grate boiler
Boiler model Rated evaporation Working pressure Steam temperature Water supply temperature Exhaust temperature Thermal efficiency Boiler dimensions
Unit t/h Mpa ℃ ℃ ℃ % mm
SZL10-1.25-T 10 0.7/1.0/1.25 170/184/194 20

150 ≥80 8830x3180x5730
SZL15-1.6-T 15 1.0/1.25/1.6 184/194/204 104 155 ≥80 14000x4174x614
SZL20-1.6-T 20 1.0/1.25/1.6 184/194/204 104 155 ≥80 15820x4620x8680
SZL25-2.5-T 25 1.25/1.6/2.5 194/204/224 104 160 ≥80 12800x6000x8420
SZL30-2.5-T 30 1.25/1.6/2.5 194/204/224 104 160 ≥80 13000x7100x9500
SZL35-2.5-T 35 1.25/1.6/2.5 194/204/224 104 160 ≥80 3000x7600x9800
