Specifications
Brand Name :
SWET
Model Number :
DHX20-1.25-0003
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
700 Set/Sets Per Year
Delivery Time :
shipped in 60 after payment
Packaging Details :
1. Industrial Steam Boiler in nude package. 2. All boiler accessories in plywood or wooden case. 3.Delivery Detail :Shipped in 60 days after payment
Rated evaporation :
20t/h
Work pressure :
1.25MPa
Steam temperature :
194℃
Feed water temperature :
104℃
Dimensions :
12000x8160x22120mm
Thermal efficiency :
91%
Description

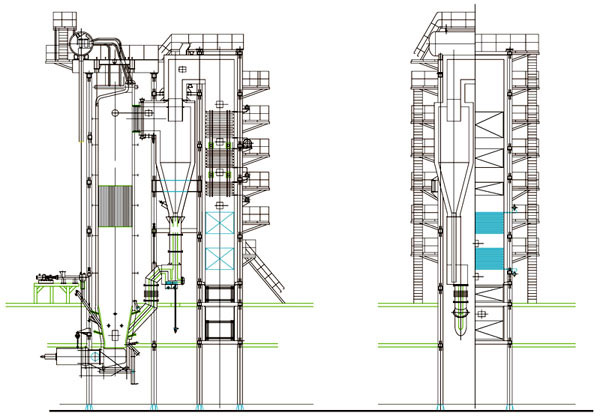

Coal Biomass Fired 1.25MPa Assembled Circulating Fluidized Bed For Power Pant

Product description

1. Boiler bed ignition (oil or gas), staged combustion, primary air ratio accounted for 50-60%, fly ash cycle low rate, temperature separation of ash discharge dry, respectively, by the spiral screw slag machine, ash cooler and Dust hopper ash discharge. Furnace is the key to ensure the full combustion of the fuel. The turbulent bed is used to make the fluidization velocity 3.5-4.5m / s, and the proper cross section of the hearth is designed. Thin inner lining (high aluminum bricks) Even when the boiler burns with different fuels, the combustion efficiency can be maintained above 98-99%.

2. High efficiency combustion

3. Wide scope of load control and fast load control

4. Clean combustion technique

5. Easy for the comprehensive utilization of ash

6. Heating surface for immersed tubes not arranged in bed

Circular flow bed CFB boiler technical parameters

Model Rated evaporation Work pressure Steam temperature Water supply temperature Fuel consumption Thermal efficiency Dimensions
Unit t/h MPa ℃ ℃ Kg/h % mm(Long x wide x high)
DHX20-1.25 20 1.25 194 104 2475 91 12000x8160x22120
DHX20-1.6 20 1.6 204 104 2483 91 12000x8160x22120
DHX20-2.5/400 20 2.5 400 104 2934 91 12000x8160x22120
DHX25-1.25 25 1.25 154 104 3003 91 13000x8610x23170
DHX25-1.6 25 1.6 204 104 3100 91 13000x8610x23170
DHX25-2.5/400 25 2.5 400 104 3692 93 13000x8610x23170
DHX30-1.25 30 1.25 194 104 3712 93 12170x9200x25500
DHX30-1.6 30 1.6 204 104 3724 93 12170x9200x25500
DHX30-2.5/400 30 2.5 400 104 4431 93 12170x9200x25500
DHX35-1.25 35 1.25 194 104 4331 91

13800x10320x26815
