Specifications
Brand Name :
SWET
Model Number :
WNS2-1.25-Y、Q-3012
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
10 t / h
Rated working pressure :
1.25 MPa
Rated steam temperature :
193.3 ℃
Feed water temperature :
20 ℃
Keywords :
gas steam boiler
Model :
WNS2-1.25-Y、Q-3012
Testing efficiency :
96.75 %
Description

2T / H 1.25Mpa Dyeing Industry Gas Fired Steam Boiler Environmentally Friendly

Product description

1. The series of boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.

2. The furnace with low profile is arranged in the center of the furnace. The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load .

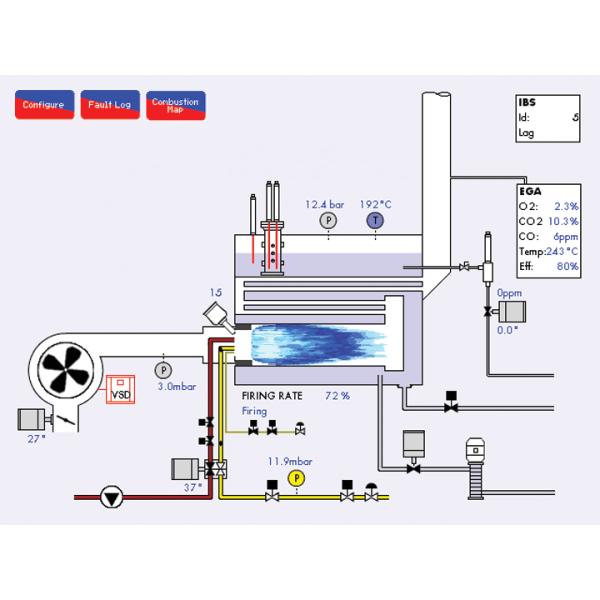

3. Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.

4. The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.

Product advantages

1. Gas steam boiler to light oil and natural gas for the design of fuel, you can also burn city gas or liquefied petroleum gas, fuel adaptability, energy efficient, low operating costs.

2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.

3. Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa ℃ ℃ Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 409.33 96.48 5160x2410x3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 334.23 96.3 4880*2710*2600
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

2T / H 1.25Mpa Dyeing Industry Gas Fired Steam Boiler Environmentally Friendly

CASE

1. 3 sets gas fired steam boiler for Canada textile mill,10t/h steam capacityand 1.6Mpa working pressure

2. WNS series Gas Fired Condensing Steam Boiler For Mongolia food packaging company
steam capacity: 6t/h, working
