Specifications
Brand Name :
SWET
Model Number :
WNS10-1.25(1.6)-Q(Y)
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
Within 30 days after payment
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
10T
Work pressure :
1.25/1.6 MPa
Steam temperature :
194/204℃
Feed water temperature :
105℃
Test efficiency :
96.75%
Air consumption :
837.25Nm³/h
Transport dimensions :
6370x2812x3514mm
Color :
Based on customer's needs
Keywords :
Oil boiler
Model :
WNS10-1.25(1.6)-Q(Y)
Description

Industrial Fast Loading Fire Tube Natural Gas Steam Boiler For Paper Industry

Product description

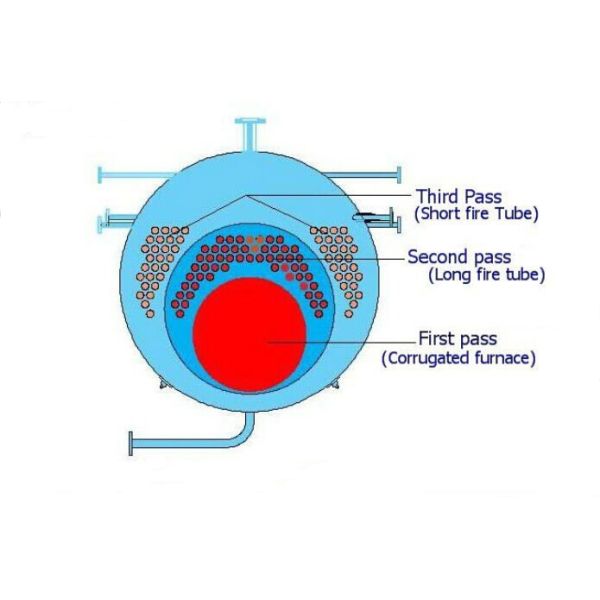

1. Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 85%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.

2. With full waveform furnace, with good thermal stretchable; full pull side butt welding technology, reducing the furnace temperature stress; tube and tube plate connected by welding form after the first expansion, eliminate corrosion problems, extend the life of the boiler; threaded pipe heat exchanger, to improve the heat transfer coefficient of the boiler.

Technical parameters

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa ℃ ℃ Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 409.33 96.48 5160x2410x3015

High Efficient Natural Gas Steam Boiler , Fast Loading Fire Tube Steam Boiler

FAQ

1. Q: Why should you believe our quality?
A:1.Sixty years of boiler manufacturing enterprise culture, boiler performance is good.

2. Q: What is the Warranty for the boilers?
A: Based on highly responsible for your esteemed company, due to equipment itself failure, our company provides 12 months since the date of shipment free maintenance

3. Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
