Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
Specifications
Brand Name :
SWET
Model Number :
YDZ0.5-0.7-S-3003
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Rated evaporation :
500 kg/h
Weight :
2700 kg
preset pressure :
0.7mpa
Rated steam temperature :
170℃
Thermal efficiency :
85%
Color :
Customer's Requirement
Design fuel :
Biomass
Warranty :
12months
Usage :
Industrial,steam heating,hospital chemical industry school,Steam Outputing
Pressure :
Low Pressure,High Pressure,Low Pressure(1.25MPa),High/Low Pressure
Steam temperature :
170 °c,175,194 ℃
Rated working pressure :
0.8MPa(8bar),0.7/1.0MPa,0.7Mpa
Fuel :
Oil-fired,Gas-fired,natural gas,lng,Oil
Output :
Steam,Hot Water/Steam
Structure :
Water Tube,Fire Tube
Description

Fully Automatic 500Kg / h Biomass Steam Boiler For Food Machinery Insdutry

Product description

1. Crossflow structure, advanced level in domestic and international.

2. After 4 or 5 minutes ignition, it can get enough pressured steam.

3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.

4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.

5. Quiet operation and stable combustion, completely according with environmental protection standard.

6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92% -96%.

Biomass steam generator features:

1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%;

2. High thermal efficiency: semi-gasification combined with tangential cyclone air distribution design, the formation of fire-burning, the combustion rate of 90% or more; with waste heat recovery flue gas

3. System, using advanced glass fiber cotton multi-layer insulation, heat loss, low energy consumption, high thermal efficiency

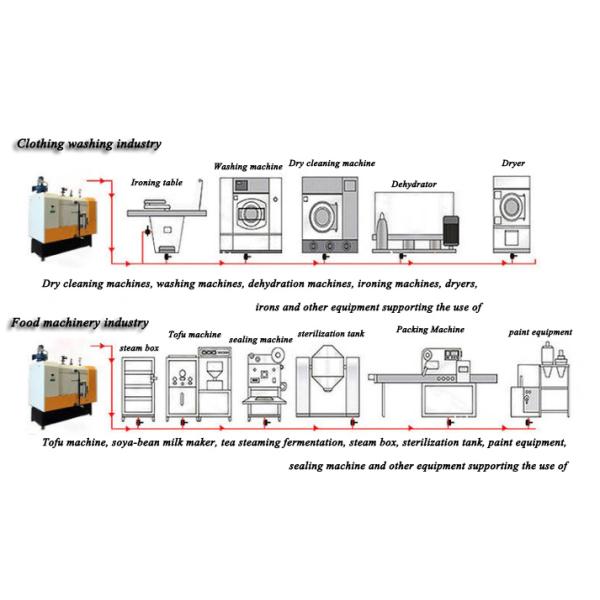

Application areas

Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature

Generator product model LHS0.1-0.7-S LHS0.15-0.7-S LSS0.2-0.7-S LSS0.3-0.7-S LSS0.4-0.7-S YDZ0.5-0.7-S
preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm

1600*900

*1900

1600*900

*1900

2150*950

*2400

2000*1400

*2700

2700*1100

*2450

2200*1500

*2500

Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature

Food Machinery Industry Biomass Steam Boiler 170℃ Rated Steam Temperature
