Specifications
Brand Name :
SWET
Model Number :
WNS8-1.25-Y、Q-3003
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
8 t / h
Rated working pressure :
1.25 MPa
Rated steam temperature :
194 ℃
Feed water temperature :
105 ℃
Keywords :
gas steam boiler
Model :
WNS8-1.25-Y、Q-3003
Gas consumption :
659.25Nm³/h
Color :
based on customer's needs
Description

China Horizontal 8T/h 1.25Mpa Gas Fired Stam Boiler With Easy Operation


Product description

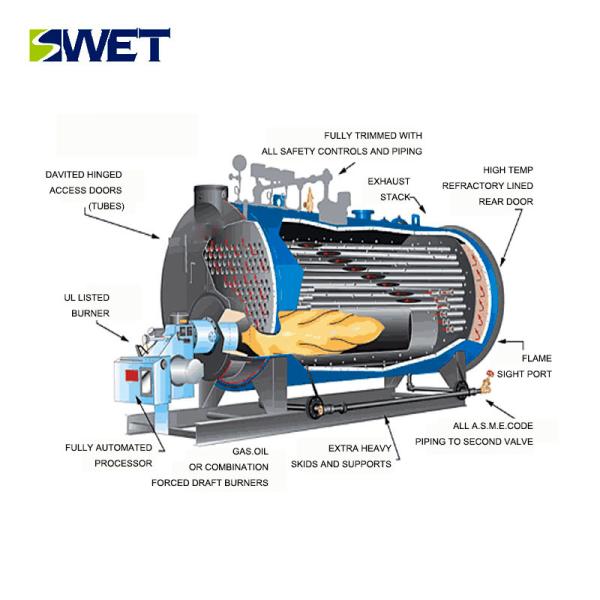

1. The WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure. The furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load

2. Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.

3. The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.

Product advantages

1. The gas steam boiler body adopts the wet butt structure of full butt weld, low profile full corrugated furnace, the structure of the boiler is good in elasticity and heat retractility, safe and reliable.

2. Gas steam boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa ℃ ℃ Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS4-1.25(1.6)-Q(Y) 4 1.0/1.25/1.6 184/194/204 20 334.23 96.3 4880x2710x2600

FAQ

1. How to get a boiler price list?

Pls tell us below to confirm a boiler model and offer the right boiler price:

1) What is the application of the boiler?

2) What is the capacity per hour do you need?

3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?

Any more questions,please sent your inquiry below
