Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Textile Industry High Efficiency Steam Boiler Full Automatic Horizontal Type Gas Fuel
Specifications
Brand Name :
SWET
Model Number :
WNS6-1.25-Y、Q-3015
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
6 t / h
Rated working pressure :
1.25/1.6 MPa
Rated steam temperature :
194/204℃
Feed water temperature :
105 ℃
Keywords :
gas steam boiler
Model :
WNS6-1.25-Y、Q-3015
Description

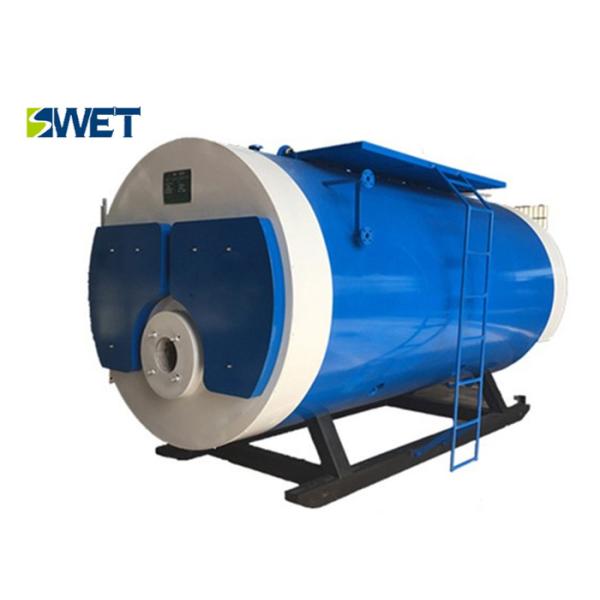

Automatic Horizontal 6T/h Gas Burning Steam Boiler For The Textile Industry

Product description

1. The series of gas steam boilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability.

2. Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type, and their main pipe fittings such as quick-break valves, filters, pressure regulating valves and leak detection devices were fully imported.

3. The performance was stable and reliable. Light oil selection GI 1000 DSPG MB.


Product advantages

1. 100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.

2. The gas steam boiler has high and low water level alarm and low water level chain protection, steam over-pressure alarm and chain protection

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa ℃ ℃ Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 409.33 96.48 5160x2410x3015

Related Products

Our main products including

1. circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler

2. power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler

3. electric hot water boiler,high-pressure boiler,fully automatic control boiler
