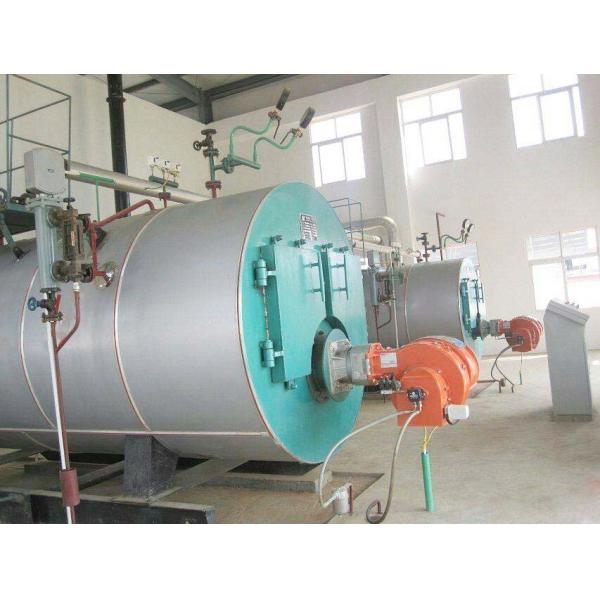

Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
Specifications
Brand Name :
SWET
Model Number :
SZS7-1.25-Y,Q-3005
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, ，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
nominal working pressure :
0.7(1.0)(1.25) MPa
Leaving Water Temperature :
95(115)(130)℃
return water temperature :
70(90)℃
efficiency :
96.87%
Model :
SZS7-1.25-Y,Q-3005
Keywords :
hot water boiler
Color :
Customer requirements
gas consumption :
754 Nm³/h
Description

Water Tube Long Service Life Hot Water Boiler For Industrial Production

Product description

1. SZS series of fuel (gas) hot water boiler for the classic D-type layout of the boiler.

2. The fuel gas hot water boiler is composed of upper and lower drums, membrane water wall, convection tube bundle and economizer and condenser.

3. After the fuel is burned in the furnace, the flue gas is discharged into the chimney through convection tube bundle and flue gas waste heat recovery device

Product advantages

1. Simple and reasonable structure

2. Safe and reliable operation

3. Sufficient output

4. Slight positive pressure combustion

5. Boiler imported burner, high combustion efficiency with ignition control and over-voltage flameout protection

6. Boiler feed water with continuous automatic adjustment, and with high and low water level alarm protection chain.

Product parameters

SZS water pipe type full automatic gas-fired hot water energy-saving boiler
Model Rated thermal power nominal working pressure Leaving Water Temperature return water temperature efficiency gas consumption Overall dimensions of transportation
Unit MW MPa ℃ ℃ % Nm³/h mm
QXS(SZS)58 58 1.25(1.6)(2.5) 130(150) 70(90) 98.3 6196 15360*7570*8318
QXS(SZS)48 48 1.25(1.6)(2.5) 130(150) 70(90) 98.09 5048 15600*9500*7920
QXS(SZS)29 29 1.25(1.6) 130(150) 70(90) 97.8 3150 9685*6870*7180
QXS(SZS)21 21 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.13 2328 10130*6170*6134
QXS(SZS)14 14 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.02 1558 8120*3385*3750
QXS(SZS)10.5 10.5 1.0(1.25)(1.6) 115(130)(150) 70(90) 97 1136 7250*3682*3820
QXS(SZS)7 7 0.7(1.0)(1.25) 95(115)(130) 70(90) 96.87 754 6770*3210*3775
QXS(SZS)7 7 1.25 115 70(90) 95.76 763 6760*2780*3299
QXS(SZS)5.6 5.6 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.57 619.2 6450*2956*3620
QXS(SZS)4.2 4.2 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.36 456.7 5700*3105*3410
QXS(SZS)2.5 2.5 0.7(1.0)(1.25) 95(115) 70(90) 95.13 314 5160*2840*2930
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life

Water Tube Hot Water Boiler 754 Nm³/H Gas Consumption Long Service Life
