Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Low Pressureoil Fired Boilers , Hot Water Gas Fired Boiler For Restaurant Heating
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
HENAN,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1200 Sets / Year
Delivery Time :
30 work days
Packaging Details :
Wooden boxes plus plastic paper packaging
Rated capacity/t/h :
2
Working pressure/MPA :
1.0
Steam temperature/℃ :
184
Feed temperature/℃ :
20
Testing efficiency/% :
96
Gas consumption/Nm3/h :
160
Description

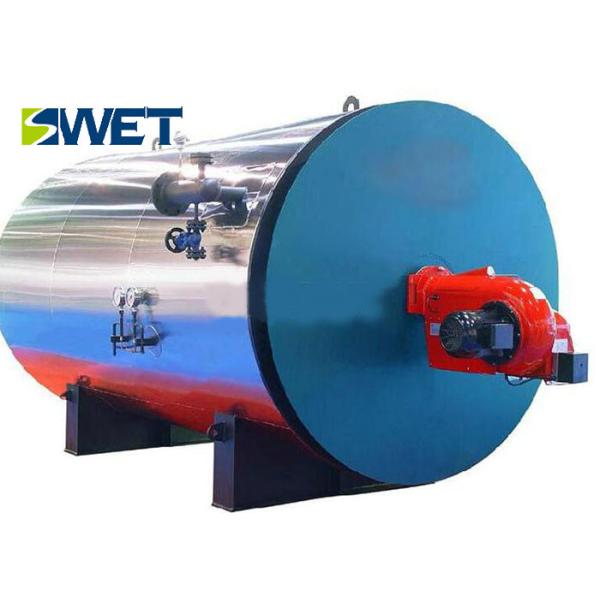

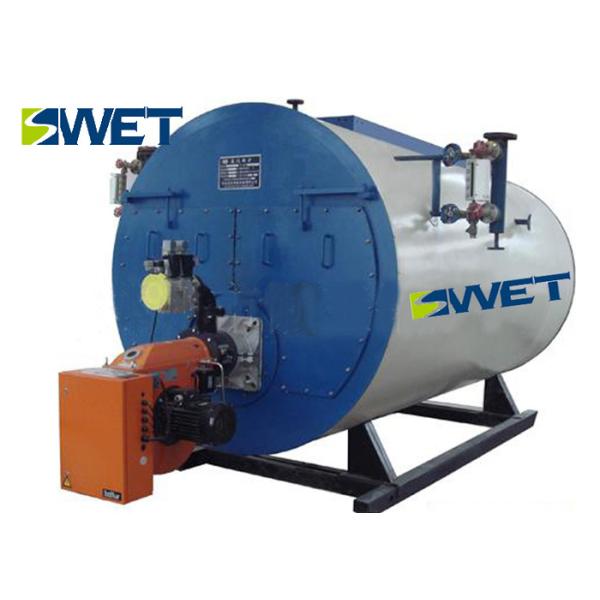

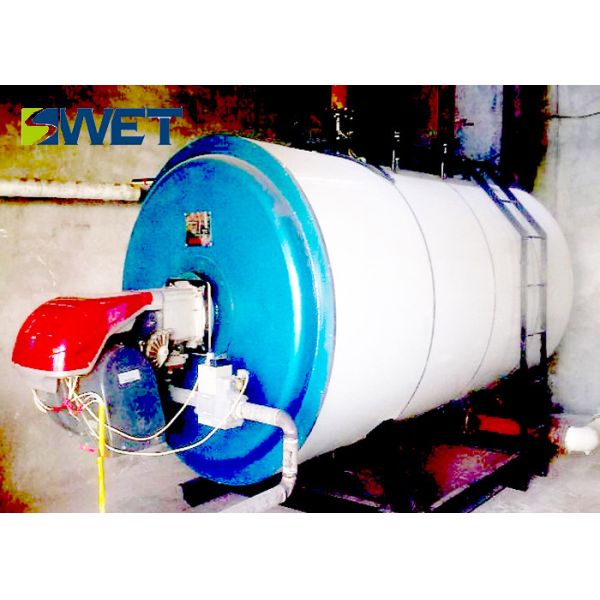

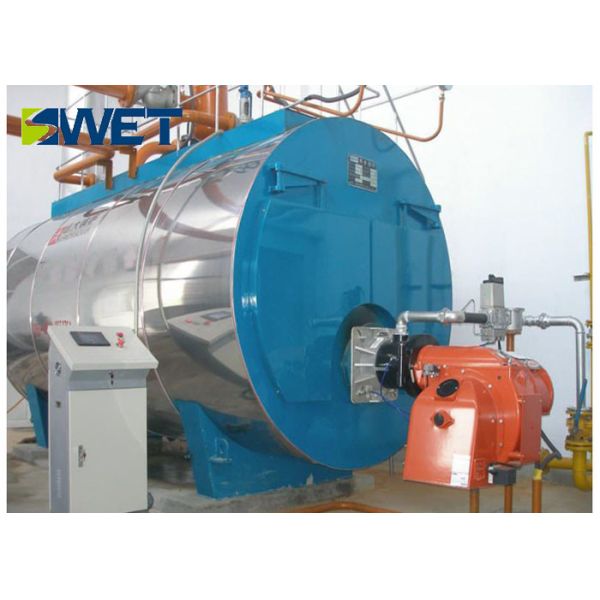

Low Pressure Oil Gas Fired Hot Water Boiler for Restaurant Heating

The high temperature flue gas will be injected into the atmosphere after convection heat transfer through the reversal chamber into the first flue tube bundle and then from the front smoke box with turning 180° into the second flue tube bundle.

WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Diesel consumption Gas consumption Outline dimension
Unit t/h Mpa ℃ ℃ ％ Kg/h Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1231.56 1407.5
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1276.63 1459

8870*3550

*3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/197/204 105 97.2 985.25 1126

7450*3520

*4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 732.59 837.25

6370*2812

*3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 96.7 576.84 659.25

6000*2920

*3403
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 379.32 433.51

5470*2770

*3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 96.48 358.16 409.33

5160*2410

*3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 292.45 334.23

4880*2710

*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 214.48 245.12

4762*2447

*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 143.26 163.72

4030*2010

*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output
