Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
LSS-6002
Certification :
ISO 9001
Place of Origin :
HENAN ,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 SETS PER YEAR
Delivery Time :
10 WORKING DAY
Packaging Details :
The 300kg steam boiler bady with plywood packaging.
Product name :
300kg gas steam boiler
Item :
LSS-6002 New type gas steam boiler
Design fuel :
gas/oil
Color :
Customer's Requirement
Warranty :
12 Months
The biggest fuel consumption(Nm3/h) :
22.3
Rated evaporation (kg/h) :
300
Rated steam temperature(℃) :
170
Rated steam pressure(Mpa) :
0.7
Burner :
Italy Riello
Description

Hot sale portable 300kg diesel steam boiler with Italy Riello burner

1. The steam boiler/generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.

2. The steam boiler/generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

3. The steam boiler/generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.

Gas steam boiler technical parameters:

Gas steam boiler technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight Full load biomass consuption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN Kpa DN mm mm mm T Nm³/h
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.6 6.5(NG)
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.5 8.4(NG)
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3 22.3(NG)
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8 30.5(NG)

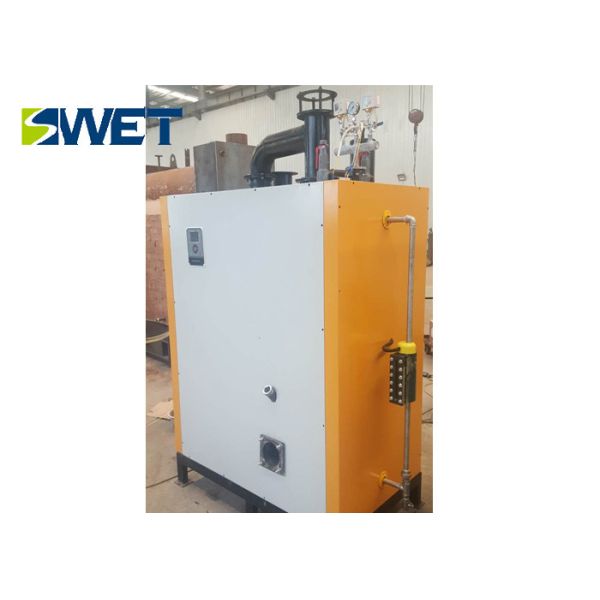

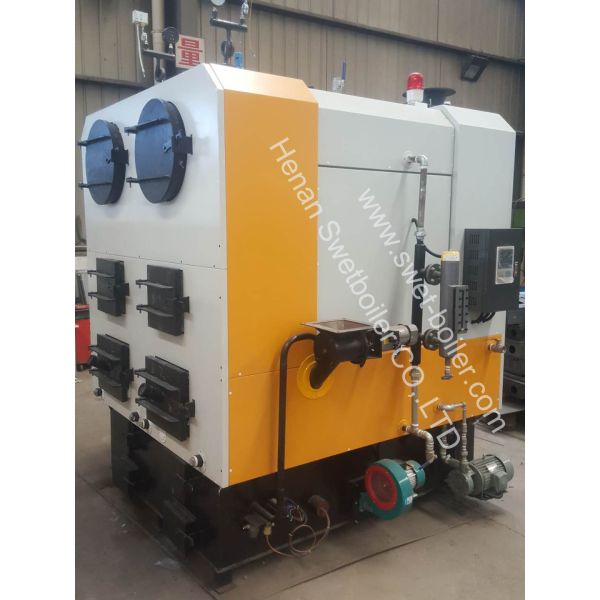

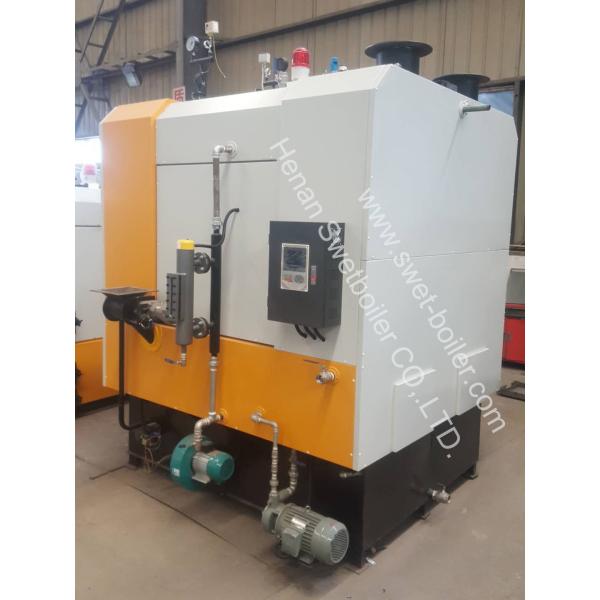

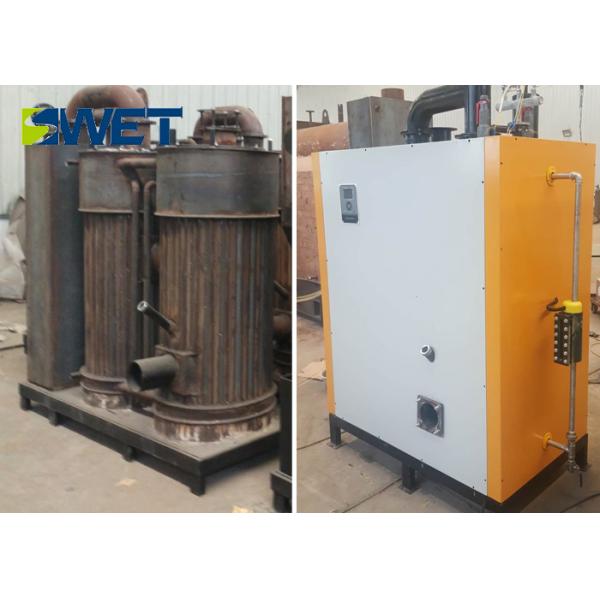

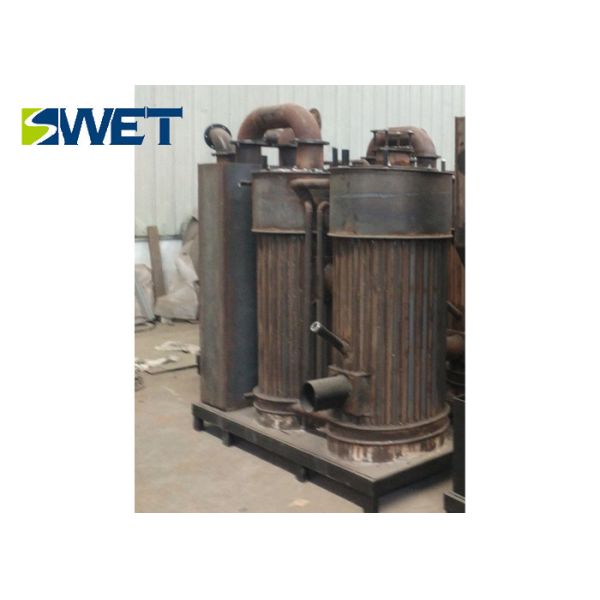

Gas steam boiler picture:Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler

Industrial Portable Gas Steam Boiler , Custom Color Diesel Steam Boiler
