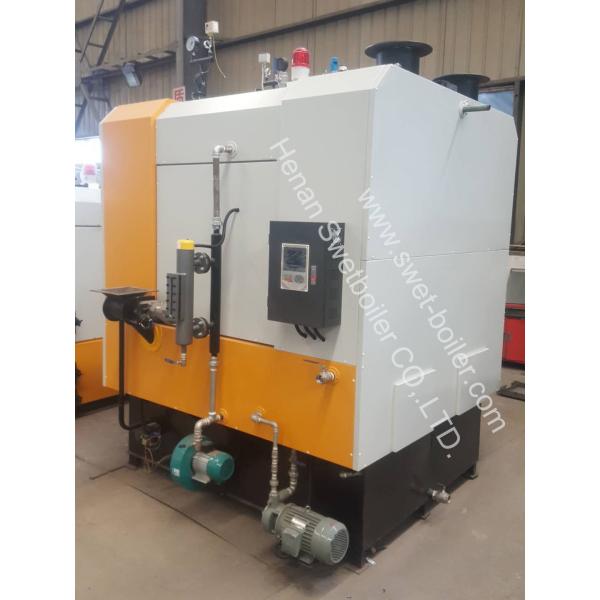

Multi Fuel LPG Gas Powered Steam Boiler , Gas Boiler Boiler For Centralized Heating

Specifications

Brand Name :

SWET

Model Number :

LSS-6011

Certification :

ISO9001

Place of Origin :

HENAN,CHINA

MOQ :

1 SET

Price :

Negotiation

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

3000 SETS PER YEAR

Delivery Time :

10 WORKING DAY

Packaging Details :

The 1000kg steam generator bady with plywood packaging.

Product name :

1000kg gas steam Boiler

Item :

YDZ-6011 gas steam boiler

Design fuel :

gas/oil

Color :

Customer's Requirement

Warranty :

12 Months

Thermal efficiency :

over 92%

The biggest fuel consumption(Nm3/h) :

74.6

Rated evaporation (kg/h) :

1000

Rated steam temperature(℃) :

170

Rated steam pressure(Mpa) :

0.7

Size :

3200x2300x2500MM

Weight :

6000kg

Burner :

Italy Riello

Material :

Boiler steel

Description

1000KG Multi Fuel LPG Gas Steam boiler For Centralized Heating

1. The steam boiler fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.

2. The steam boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

3. The steam boiler furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.

4. The steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.

Gas steam boiler technical parameters

Gas steam boiler technical parameter
Rated evaporati on	Rated pressure	Rated steam temperat ure	Feed water temperat ure	Design thermal efficienc y	Water capacit y	Steam outlet	water intake	Drain valve	Gas supply pressur e	Gas pipe diamet er	Dimensions			Shippin g weight	Full load biomass consuption
											L	W	H
Kg/h	Mpa	℃	℃	%	L	DN	DN	DN	Kpa	DN	mm	mm	mm	T	Nm³/h
80	0.7	170℃	20℃	90%	27	15	15	20	2-3.5	20	1050	1000	1500	0.5	6.5(NG)
100	0.7	170℃	20℃	90%	27	15	15	20	2-3.5	20	1150	1100	1600	0.6	8.4(NG)
150	0.7	170℃	20℃	90%	27.6	15	15	20	2-3.5	20	1250	1200	1700	0.7	11.7(NG)
200	0.7	170℃	20℃	90%	27.6	20	15	25	2-3.5	20	1600	1500	2300	1.2	15.7(NG)
300	0.7	170℃	20℃	92%	28	32	15	25	3.5-5	20	1700	1600	2300	1.3	22.3(NG)
400	0.7	170℃	20℃	92%	28.6	32	15	25	3.5-5	32	2350	1750	2200	2.8	30.5(NG)
500	0.7	170℃	20℃	92%	29	40	15	25	3.5-5	32	3200	1500	2100	3	37.9(NG)
600	0.7	170℃	20℃	92%	29	40	15	25	3.5-5	32	3200	1500	2500	4.2	46.9(NG)
1000	0.7	170℃	20℃	92%	29	40	15	25	3.5-5	32	3000	2300	2500	6.0	74.6 (NG)
