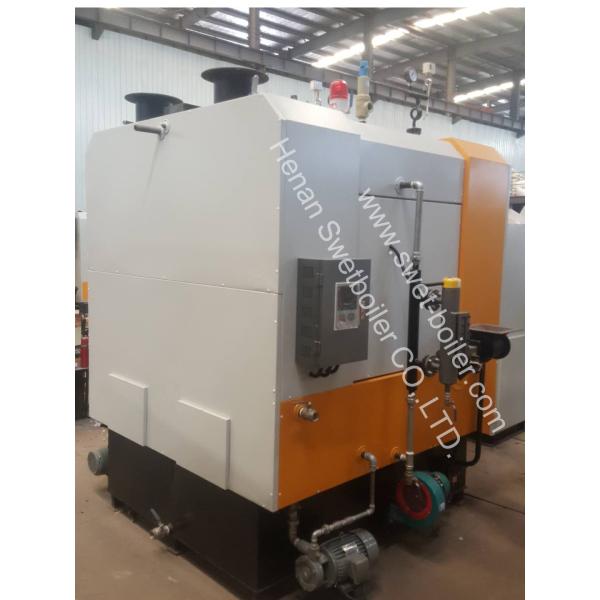

400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
Specifications
Brand Name :
SWET
Model Number :
LSS-7002
Certification :
ISO 9001
Place of Origin :
HENAN CHINA
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
400kg
Steam pressure :
0.7Mpa
Rated steam temperature :
170℃
Thermal efficiency :
93%
Color :
Customer's Requirement
Design fuel :
Biomass
Warranty :
12 months
Weight :
1200kg
Dimension :
2150x1000x2400mm
Material :
boiler steel
Description

400KG Atmospheric Pressure Biomass Steam Boiler


The biomass steam boiler description

1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.

2. The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth.complete combustion and no visible smoke emissions. fully meeting the national emission requirements on the boiler.

3. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.


The biomass steam boiler technical parameters

Biomass steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200/2500 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500/3100 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500/3100 4.3 80
1000 0.7 170℃ 20℃ 93% 29 32 15 25 3000 2300 2500 6 153.5

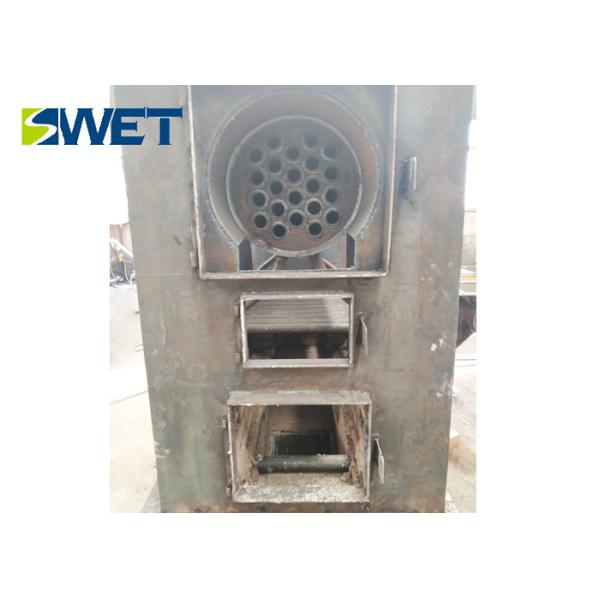

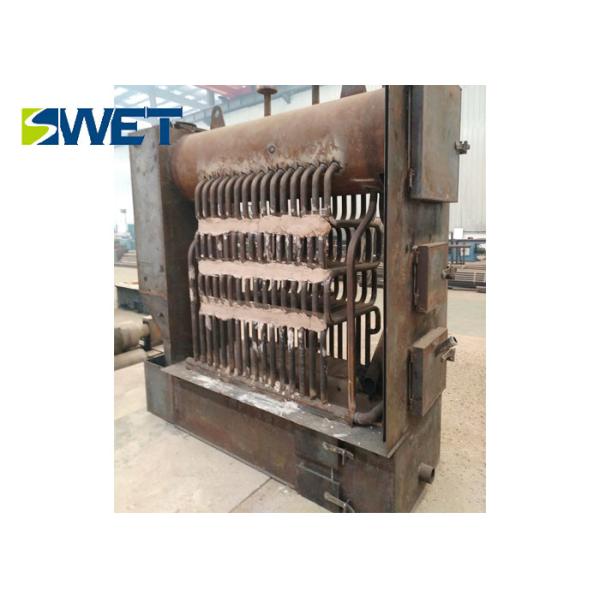

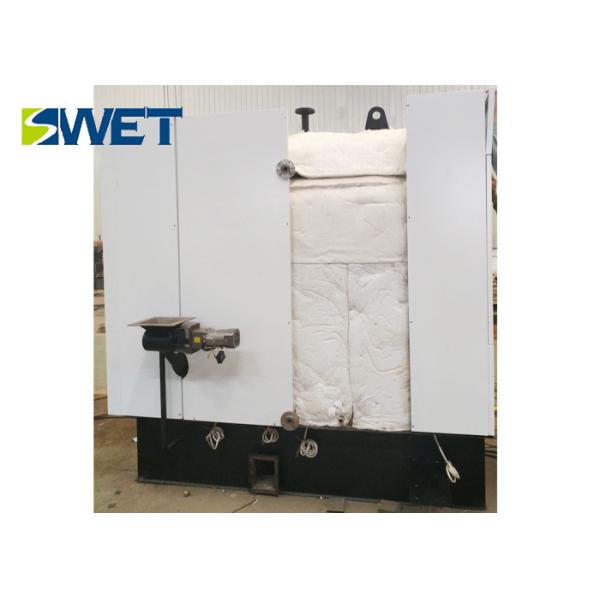

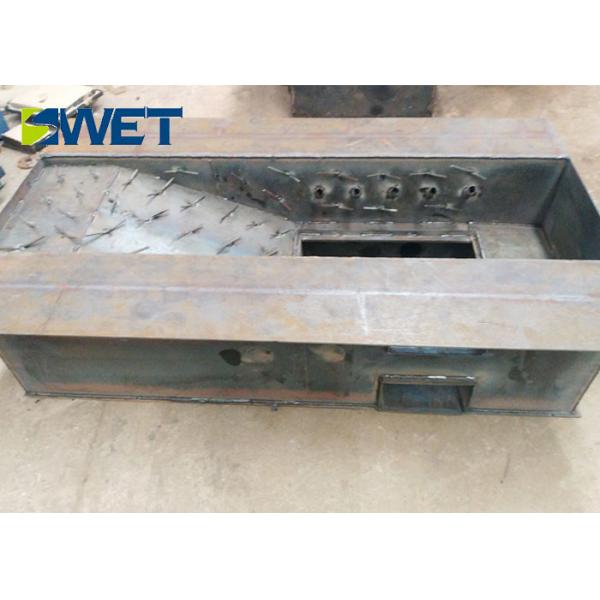

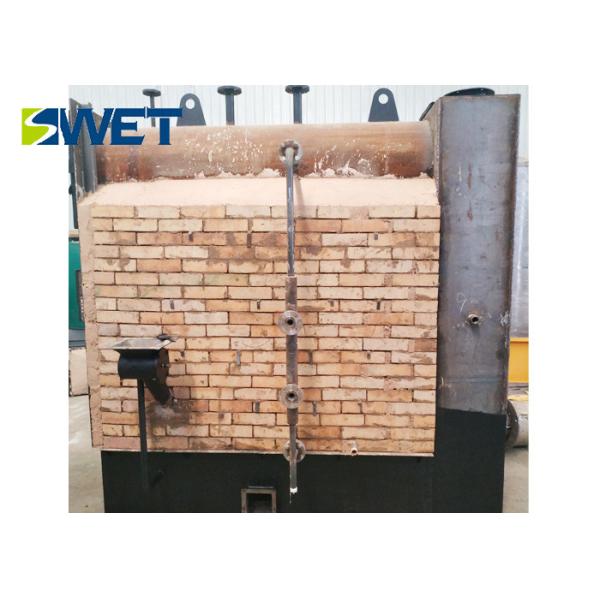

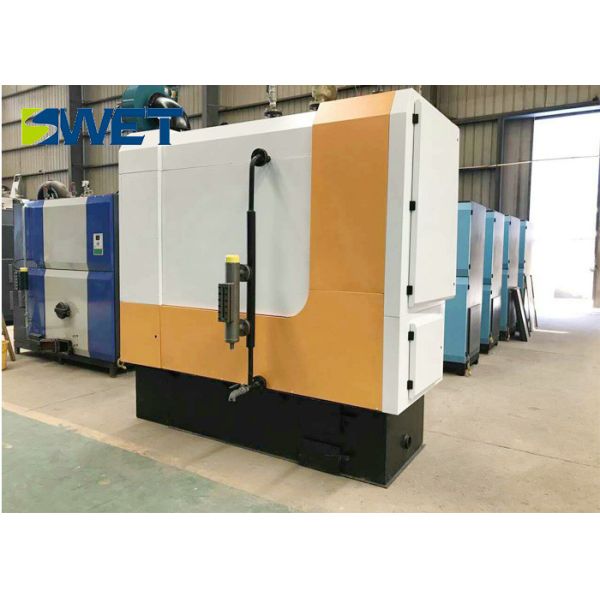

400kg biomass steam boiler production process:

400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material

400KG Atmospheric Pressure Biomass Steam Boiler High Strength Steel Material
