Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
200units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
engine :
weichai
gearbox :
ZF
color :
yellow
condition :
new
warranty :
1year
Description

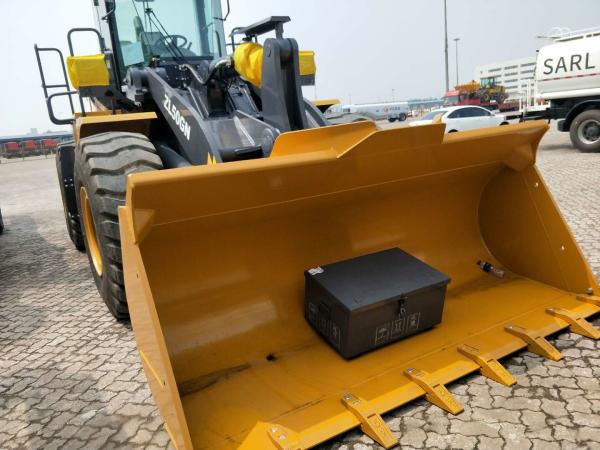

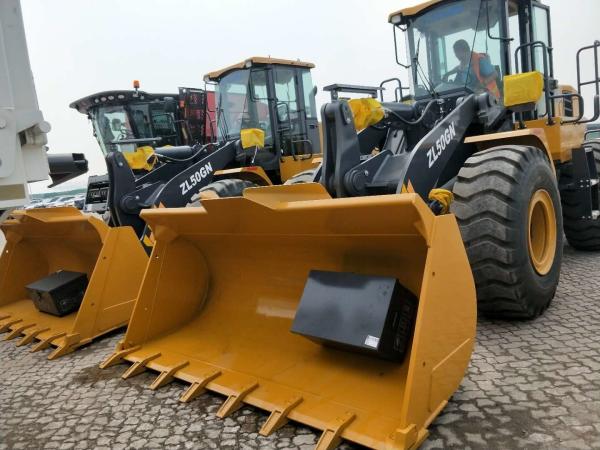

XCMG Official Manufacturer ZL50GN 5ton articulated wheel loader

XCMG Official Manufacturer ZL50GN 5ton articulated wheel loader with weichai engine

ltem
Parameters
Unit
Rated load
5000
kg
Rated bucket capacity
3
m³
Total weight
17500
kg
Dumping height(from ground to main blade plste)
3090
㎜
Dumping distance(from the front wheel to main blade plate)
1130
㎜
Maximum breakout force
170
KN
Max.tractive force
165
KN
Lifting time of swing arm
≤6.5
s
Total cycling time
≤11
s
Minimum turning radius(outer edge of bucket)
7300
㎜
Minimum turning radius(tire center)
6400
㎜
Articulated angle
35
°
Gradeability
30
°
tire size
23.5-25
Overall demension of machine(L×W×H)
8165×3016×3485
㎜
Engine model
WD10G220E23
Rated power/rotate speed
162/2000
kW/r/min
Travel speed
Gear I(F/R)
0~11.5/0~16.5
km/h
Gear II(F)
0~38
km/h
