Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Brand :
XCMG
Condition :
NEW
Color :
Optional
Span :
6.1m
Rated Lifting Moment :
2303kN.m
Description

XCMG Official 70 Ton Construction Machinery Telescopic Boom Crane Truck QY70K-I For Sale

1. Full dimension flat-head cab for chassis, all covered walking surface, double H-type outriggers and a fifth jack are available, as well as 360°ºoperation of boom, power system with various options.
2. It has the longest boom compared to the same class crane boom. Five-section boom of oval cross-section with special sliders, aligning device and high-tension steel plates contribute to smooth telescoping, reliable alignment, light boom weight and strong lifting capacity.
3. Bi-part jib, comprising one lattice section and one box section.
4. Double cylinder plus ropes for boom telescoping. Thick cable and bearing are imported parts and have reliable performance.

Specification
Description
Unit
Parameter value
Max. total rated lifting capacity
t
70
Min. rated working radius
m
3
Turning radius at turntable tail
mm
3550
Max. load moment
Base boom
KN.m
2303
Fully-extended boom
1129
Fully-extended boom + Jib
580.2
Hoist height
Base boom
m
11.8
Fully-extended boom
44.2
Fully-extended boom + Jib
59.4
Boom length
Base boom
m
11.6
Fully-extended boom
44.5
Fully-extended boom + Jib
59.5
Overall length
mm
13900
Overall width
mm
2800
Overall Height
mm
3575
Wheel Base
mm
2304+2075
Total vehicle mass in travel configuration
kg
43000 (not including auxiliary counterweight of 1t)
Engine Model
WD615.338
Engine rated power
kw/(r/min)
276/2200
Engine rated torque
N.m/(r/min)
1500/1400
Engine rated rotational speed
r/min
2100
Max. travel speed
km/h
80
Producr Show
Below picture for you reference

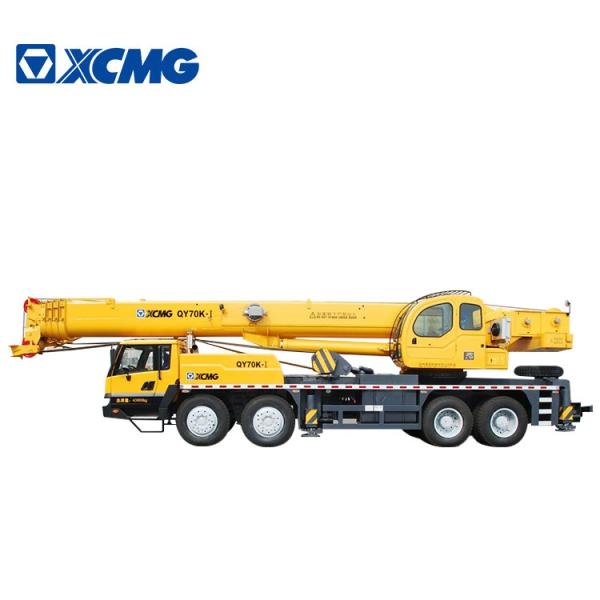

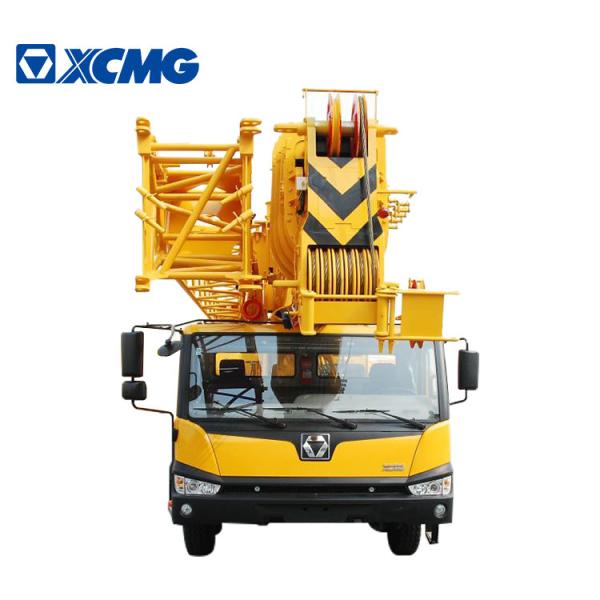

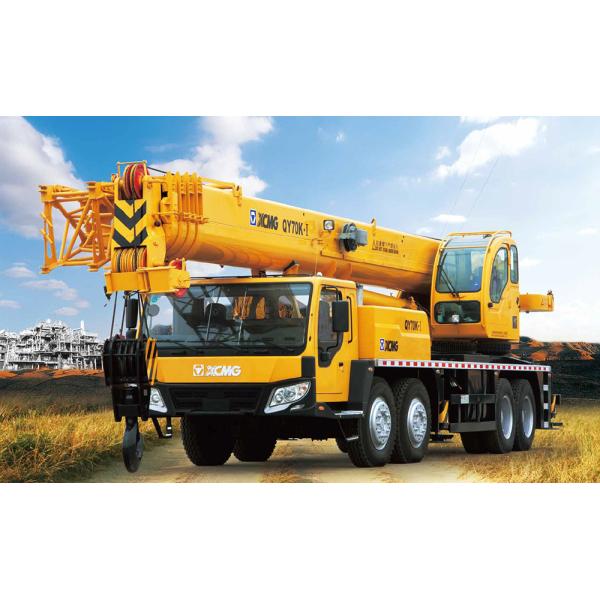

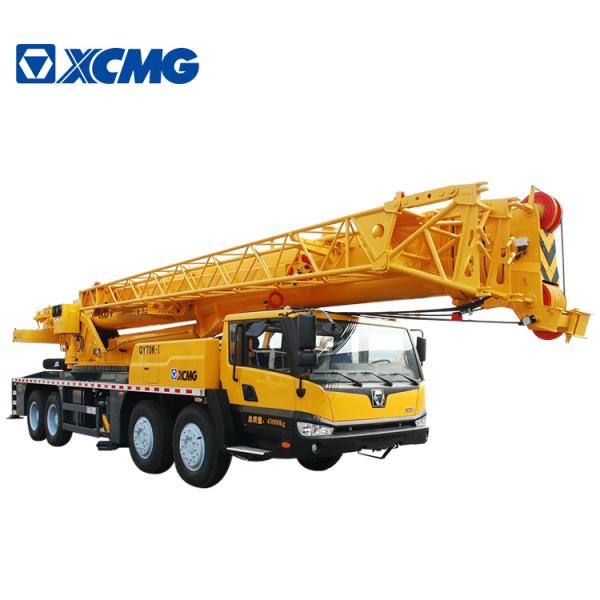

Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
Construction Machinery Telescopic Boom Crane Truck QY70K-I XCMG Official 70 Ton
