Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
negociable
Supply Ability :
1000 units per month
Delivery Time :
Within 35 days
Packaging Details :
nude with waxing on deck or in container
Driving mode :
6x4
Engine power :
420 HP
Dimension :
6980*2496*3850 mm (LWH)
Towing capacity :
minimum 40000KG
Pin size :
60# /90#
Engine :
Euro II Euro III Euro IV
Description

Brand Description

Howo series products are made by Sinotruck with MAN`s techinique from Germany. Both frames and axles are produced by techniques originating from Germany.

series products feature lots of heavy duty trucks, tippers, mining tippers, tractor trailers, cargo trucks, cement mixer trucks, garbage trucks, fire fight trucks, among others. With respect to various types of trucks, different powers, namely, 266, 290,336,371 as well as 420HP are readily available. We also have a wide selection of driving modes featuring 4x2, 4x4, 6x2, 6x4,8x4.

Advantaged by the high quality and competitive price , our products have been exported to more than 100 countries. Our customers ascribe their high-efficiency work to our products, which helps us earn a good reputation.

Advantage of product

1. Powerful engine provide amazing towing power even whilst low rotation speed .

2. Axles and Tires mady with MAN`s techinque, excellent overloading capacity

3. 8+8 frame made by High strength alloy steel, key parts has been reinforced, it can fit very rough road.

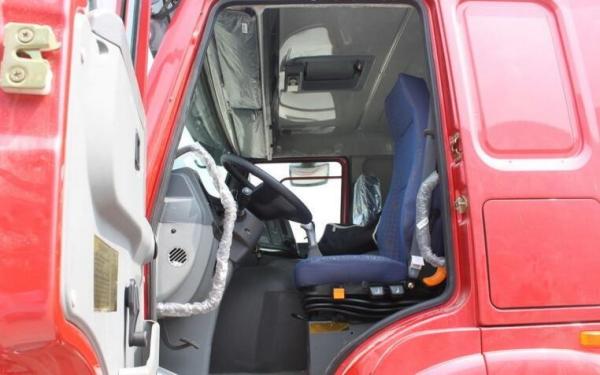

4. Cabin adaopt BENZ techinque, confortable and safety for driver

Specifications

Model ZZ4257N3247N1B
Weight in kg Curb weight :8800kg
Full rated:25000kg
Towed mass:40000kg
Dimension Overall (mm)
L*W*H 6985*2496*3210(2960;3500,3760,3980)
Wheel base:3200+1400mm
Minimum ground clearance:280mm
Performance Max.speed: 90-102km/h
Economic speed: 72-89km/h
Max.gradeability:25%
Minimum turing circle:15m
Engine Model
D1.34-31;D12.38-30
MAX Output
420HP
Max torque(Nm/RPM)
1490/1200-1500;1650/1100-1500
Transmission: HW19715CL
Clutch 430mm
Rear axle model MCY13Q
Rear axle ratio 4.11;3.7;3.36;3.08
Fuel capacity 400L
Overhang(Front sping/Rear spring) 9/12;4/12;4/-;3/12;3/-;3/5
Tyres 315/80R22.5
Frame section 270x85x8mm
Driving mode 6x4
