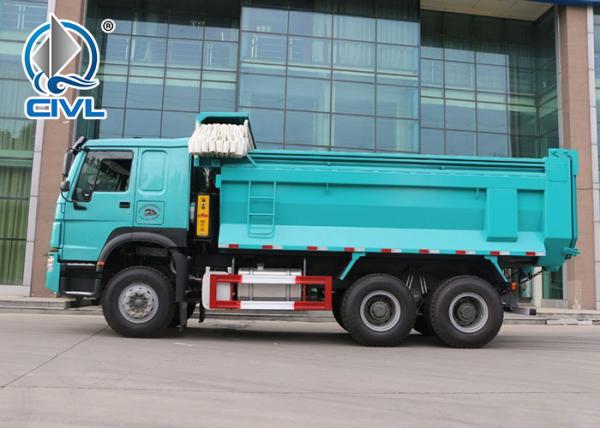

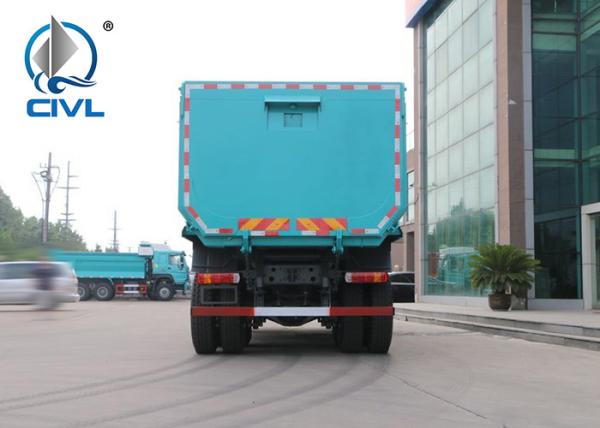

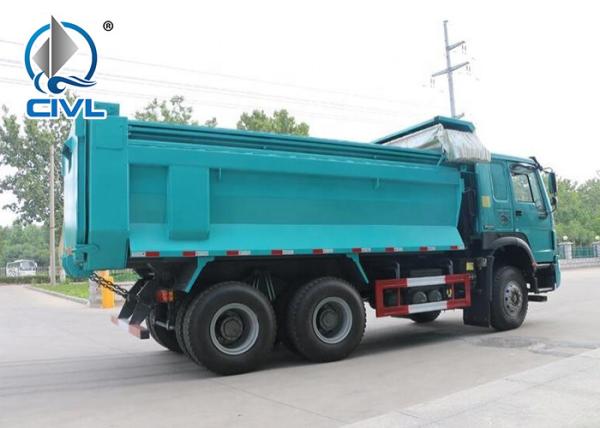

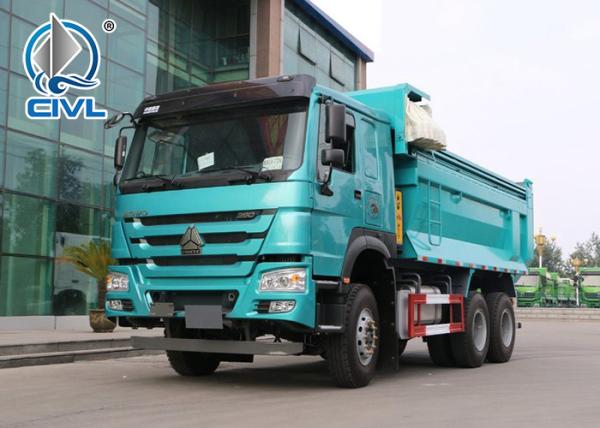

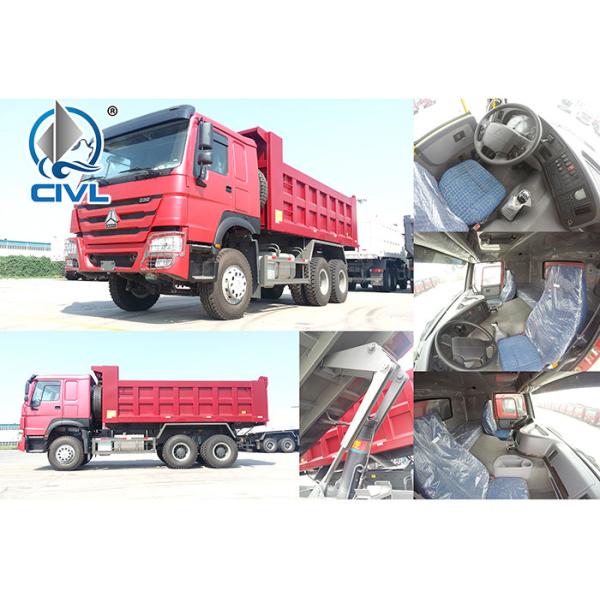

Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
Specifications
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Brand Name :
CIVL
Name :
Heavy Duty Dump Truck
Truck type :
ZZ3257M3857A
Horsepower :
290hp
Brand :
Sinotruk HOWO
Load capacity :
30T
Transmission :
Twin Countershaft Structure
Description

Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission

Heavy Duty Dump Truck Description:


HOWO Heavy Duty Dump Truck can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .

HOWO Heavy Duty Dump Truck Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

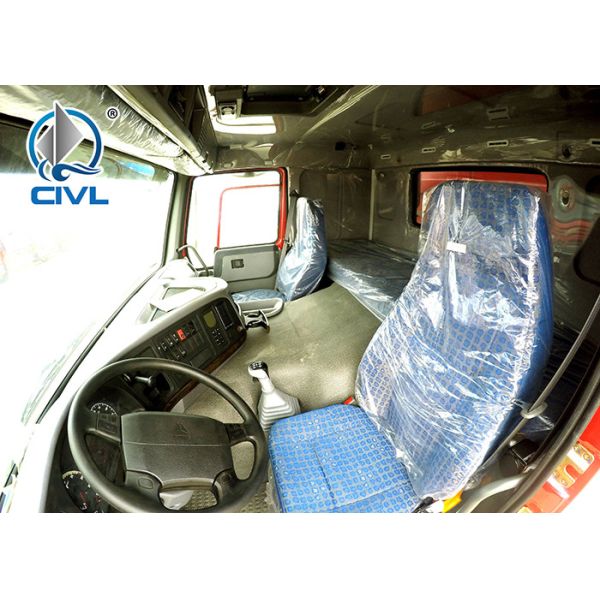

HOWO Heavy Duty Dump Truck Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

HOWO Heavy Duty Dump Truck Specifications:

Model

HOWO Heavy Duty Dump Truck

Cabin

Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt,

Adjustable steering, Sunroof, sun cap, single bunk

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

290HP/280kw

WEICHAI engine

Displacement(L):

9.726liter

Max torque:

1460NM@1400-1600rpm

Bore/stoke:

126mm/130mm

Fuel consumption:

<198g /kwh

Gear box

American technology

Max torque:1600NM

Model:

HW15710C

Speed:

15speed, 2reverse

Axle(front/rear)

Front axle

9T STR technology non-driving steering axle

Tandem

16T STR technology double reduction, hub redactor driving axle

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake (EVB)

Steering

ZF8118, driver sit at the Left hand side, RHD is optional

Tyre

10+1 spare tyre with rim

12.00-20 bias tyre

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body: type of body :

Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body)

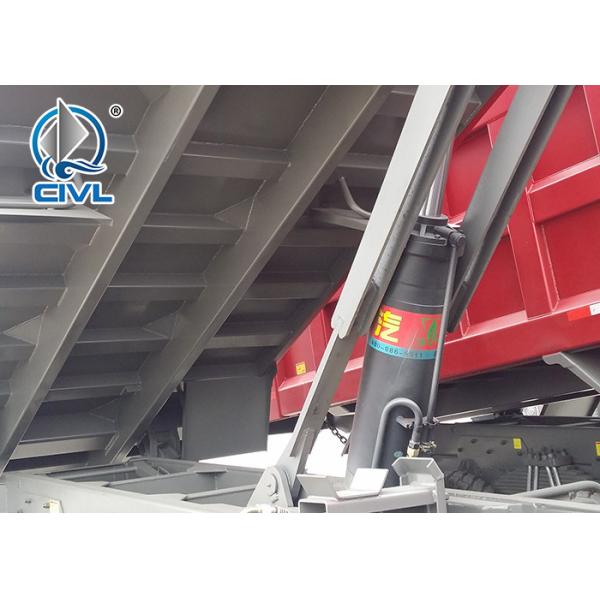

Lifting type: HYVA front lifter type hydraulic system

Overall dimension(mm): 11868x2496x3250 (Length x width x height)

Wheelbase

3800+1400mm

Track:

Front/Rear

2036/1850

Approach/Departure angle

28/30

Front /Rear overhang

1525/1654

Max speed

90km/h

Curb weight:

12190kg

Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure TransmissionSinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure TransmissionSinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure TransmissionSinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure TransmissionSinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission
