Specifications
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Brand Name :
CIVL
Name :
6 Wheel Dump Truck
Feature :
High Power
Horsepower :
290hp
Axle :
STR
Load capacity :
30T
Other Name :
Heavy Duty Dump Trailer
Description

High Power 6 Wheel Dump Truck / Energy Saving Heavy Duty Dump Trailer

6 Wheel Dump Truck Description:


6 Wheel Dump Truck equipped with China National Heavy Duty Truck WD615 Europe -Ⅲ turbocharged water-cooled diesel engines (may require optional European -Ⅱ engine according to the customer). HOWO4 × 4 all-wheel drive transportation points, dump, pulling three series, power coverage of 290 ~ 380Ps; cab passive safety performance has reached world advanced level, install four-point cab suspension with lateral stabilizing device, with high driving comfort ; China's heavy truck configuration HW transmission, diaphragm spring clutch, 1200/2000-type splitter, front and rear drive axle reinforced, WABCO braking system, ZF steering gear assembly and other advanced components. Vehicle CAN bus communication technology, VDO electrical instruments, improve the reliability of the electrical system, brake system uses VOSS quick plug connector to ensure tightness of the braking system, improves security.
6 Wheel Dump Truck Transmission

HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

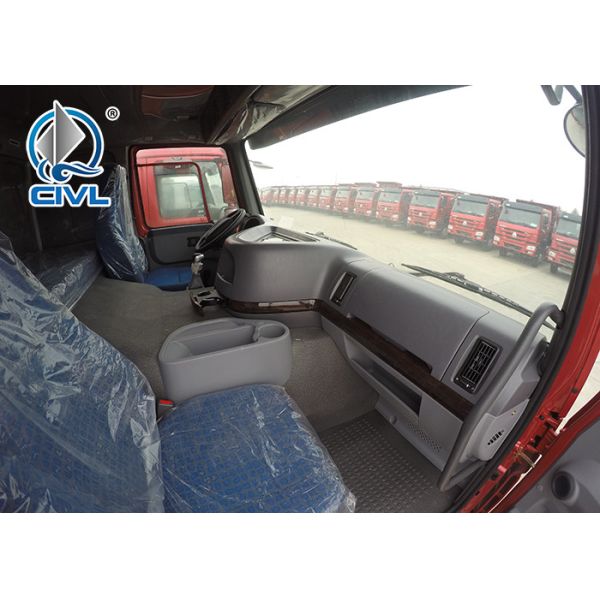

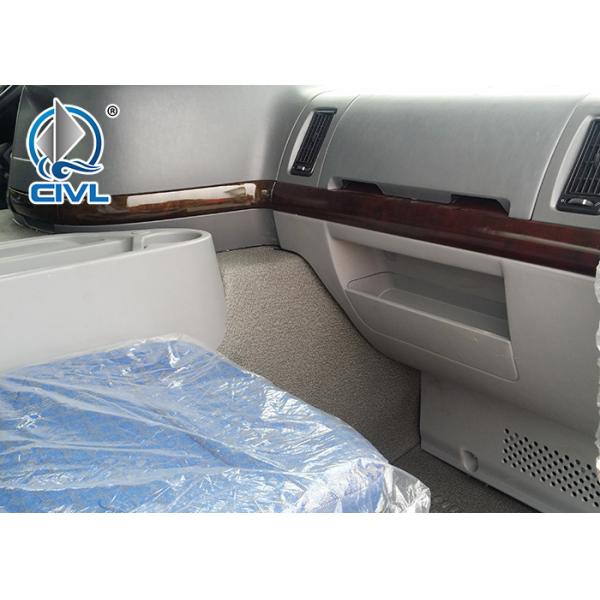

6 Wheel Dump Truck Cabin

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

6 Wheel Dump Truck Specifications:

Model

6x6 dump truck Based on using STR technology

Gear box

American technology

Max torque:1600NM

Model:

HW15710C

Speed:

15speed, 2reverse

Axle(front/rear)

Front axle

9T STR technology non-driving steering axle

Tandem

16T STR technology double reduction, hub redactor driving axle

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake (EVB)

Steering

ZF8118, driver sit at the Left hand side, RHD is optional

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah, cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20 bias tyre

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

10/12
