Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle
Specifications
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Brand Name :
CIVL
Name :
Heavy Duty Dump Truck
Truck type :
ZZ3257M3857A
Horsepower :
290hp
Axle :
STR
Load capacity :
30T
Tire :
1200R20
Description

Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle

Heavy Duty Dump Truck Description:

30T Load STR Axle 6x6 tipper truck hyva dumper truck

all-wheel drive sport utility vehicle series is China's heavy truck integrated use of the current world of advanced automotive technology, the choice of proven components assembly developed a series of products.

6 × 6 all-wheel drive model equipped with China National Heavy Duty Truck WD615 Europe -Ⅲ turbocharged water-cooled diesel engines (may require optional European -Ⅱ engine according to the customer). HOWO4 × 4 all-wheel drive transportation points, dump, pulling three series, power coverage of 290 ~ 380Ps; cab passive safety performance has reached world advanced level, install four-point cab suspension with lateral stabilizing device, with high driving comfort ; China's heavy truck configuration HW transmission, diaphragm spring clutch, 1200/2000-type splitter, front and rear drive axle reinforced, WABCO braking system, ZF steering gear assembly and other advanced components. Vehicle CAN bus communication technology, VDO electrical instruments, improve the reliability of the electrical system, brake system uses VOSS quick plug connector to ensure tightness of the braking system, improves security.

HOWO6 × 6 all-wheel drive can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .

Transmission

HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.

Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.

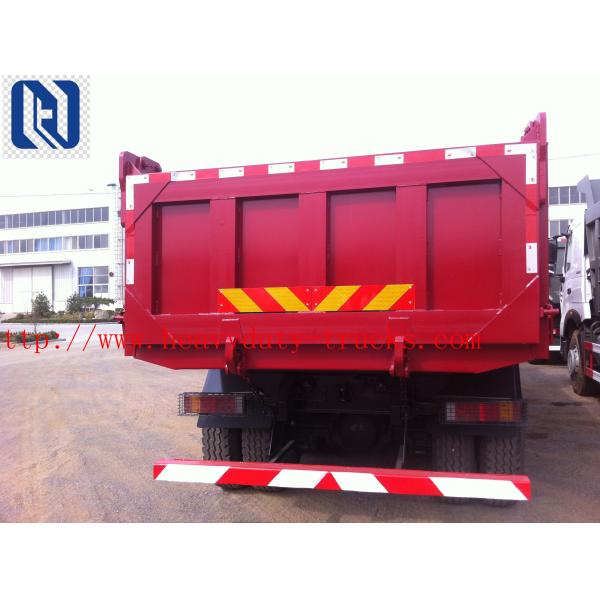

Details Photo:
Sinotruk HOWO 6x6 Heavy Duty Dump Truck ZZ3257M3857A 30T Load STR Axle

Heavy Duty Dump Truck Specifications:

Model

6x6 dump truck Based on using STR technology

Cabin

Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt,

Adjustable steering, Sunroof, sun cap, single bunk

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

290HP/280kw

WEICHAI engine

Displacement(L):

9.726liter

Max torque:

1460NM@1400-1600rpm

Bore/stoke:

126mm/130mm

Fuel consumption:

<198g /kwh

Gear box

American technology

Max torque:1600NM

Model:

HW15710C

Speed:

15speed, 2reverse

Axle(front/rear)

Front axle

9T STR technology non-driving steering axle

Tandem

16T STR technology double reduction, hub redactor driving axle

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake (EVB)

Steering

ZF8118, driver sit at the Left hand side, RHD is optional

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah, cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20 bias tyre

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body: type of body :

Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body)

Lifting type: HYVA front lifter type hydraulic system

Overall dimension(mm): 11868x2496x3250 (Length x width x height)

Wheelbase

3800+1400mm

Track:

Front/Rear

2036/1850

Approach/Departure angle

28/30

Front /Rear overhang

1525/1654

Max speed

90km/h

Curb weight:

12190kg
