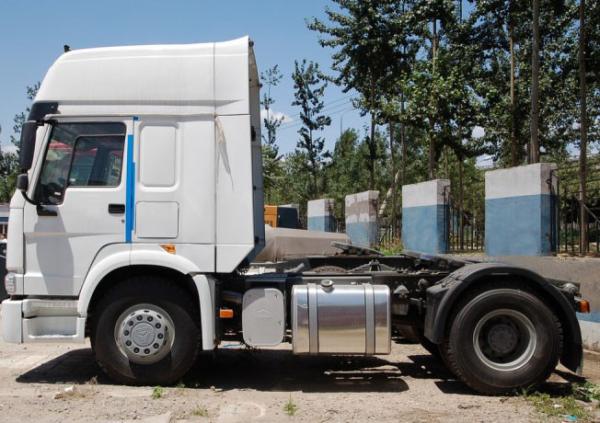

Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
LC/TT etc, T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Description

Specification:

Model

ZZ4187M3517C1

Dimension(lenght x width x height)(mm)

6110X2496X2958

Gross weight (kg)

18000

Total weight(kg)

7100

Max speed (km/h)

102

Wheelbase(mm)

3500

Engine

Mode

WD615.97C

Rated engine power(kW/r/min)

221/1900

Max torque (N.m/r/min)

1340/1200~1500

Clutch

φ430mm diaphragm spring clutch

Gearbox

Mode

HW13710

Ratio

10.73 7.98 5.91 4.38 3.29 2.45 1.82 1.35

1.00 0.75 R1 10.49 R2 2.39

Drive axle

HW1249 single rear axle ,i=3.91

Steering

ZF8098

Transfer

mode

1200

High-grade/low-grade ratio

1.00/1.75

Brake type

service braking; dual circuit compressed air brake; parking brake(hand brake),spring energy air cut brake

Cab

HOWO76 cab

Electric system

HOWO electric system ,24V,negarive grounded

Tire

12.00-20

Fuel tank(L)

400

Option engine model

WD615.92C,WD615.97C

Sinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inchSinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inchSinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inchSinotruk Howo Prime Mover Truck 336hp 4x2 Tractor Truck Dimension 6110 X 2496 X 2958mm With 2.0inch

Our aim is:
to use our products to make your project value-added!
To use our products to make your city and country more clean, beautiful and modern!
Our Principal: honest innovation Cherish life protect environment

1:Any inquiry will be replied within 24 hours.

2.Well-trained and experienced staff to answer all your inquiries .

3.Factory visit is welcomed and free booking hotel and airport pick up service.

4. Engineers will go to clients' site for guiding the installation and test-running.

5.Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you in a fast way.

6.15 months super long time guarantee period.

7. For the dump truck and semi trailer,it's half a year,If there are some quality problems in axle,transmission,engine,etc,and confirmed it's really the quality problems,we'll send the parts free,but man wrong operation and daily fast moving spare parts are not included,for the trailer,the electric systems and fast moving spare parts are not included.

PS:

We have our own spare parts departments .we can satisfy your demand within 10days .

Transport

Truck is nude packing, shipping in container, in bulk ,in ro-ro.

We will choose the best shipping type based on truck volume, truck structure, Sail Schedule, clients’ requirement for clients!
