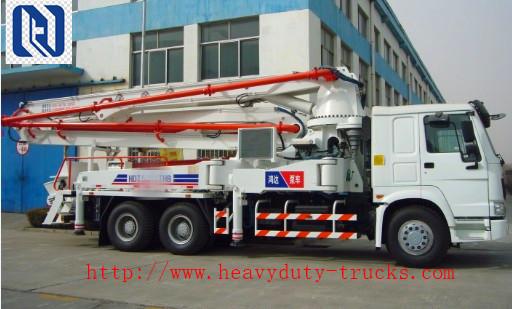

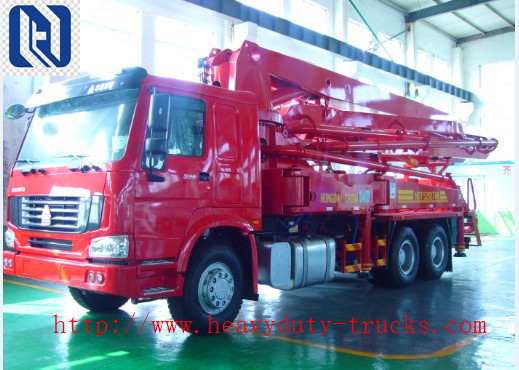

SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks
Specifications
Place of Origin :
China
Brand Name :
CIVL
Certification :
ISO,CCC
Model Number :
CIVL
MOQ :
1
Price :
Negotiable
Packaging Details :
Nude
Delivery Time :
Within 35 days
Payment Terms :
LC/TT
Supply Ability :
300 units per week
color :
customised
transportation :
by bulk ship
Description

SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks

Description:

1. In 1982, the China’s first concrete pump truck rolled off the production line in Shantui Chutian.

2. Sino Heavy Machinery CO., LTD(SHMC) is the authorized company of Shantui. In 2013, Shantui-SHMC S9

concrete pump trucks made greater achievements.

3. Advantages:

A. Energy Saving. Supporting overall power matching and automatic adjustment of engine and oil pump; Design

with a motor driven radiator to ensure automatic control, high efficiency and energy conservation; Average fuel

consumption for pumping operation reduced by 20%.

B. Stand wear and tear.

End elbow-designed with patented technology to ensure prolonged life time up to 30,000m3.

Concrete piston- Made of high-strength composite materials to ensure prolonged life time to 25,000m3.

Glasses plate-Mounted with cemented carbide to ensure prolonged life time up to 50,000m3.

Cutting ring-Mounted with cemented carbide to ensure prolonged life time up to 25,000m3.

Conveyor cylinder-Inner chrome-plated coating 30um, hardness>HV900, with extended life cycle up to 15,000m3.

SHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping TrucksSHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping TrucksSHMC Cement Pump Truck 37m Boom , Air Cooling Concrete Pumping Trucks

Specifications:

Model

SHMCHJC5275THB-37

Dimension L*W*H

12000*2500*4000

Truck GVW

27000kg

Folding Type

4 sections R-type

Boom Swirling Angle

90/180/180/240 .

Boom Vertical Height

36.6m

Boom Horizontal Length

32.6m

Boom Vertical Depth

23.7m

Minimum Boom Height(Extended)

6.5m

Turntable Rotation Angle

365 .

Outrigger Operating Method

Rear H-shaped outrigger

Maximum Span Front Outrigger(Extended)

7.1m

Maximum Span Rear Outrigger(Extended)

7.8m

Theoretical Concrete Output

81m3/h with high pressure

138m3/h with low pressure

Theoretical Pumping Pressure

High pressure: 9.4Mpa

Low pressure: 5.5Mpa

Conveyor Cylinder Bore

230mm

Conveyor Cylinder Stroke

1900mm

Hopper Capacity

600L

Oil Pressure

32Mpa

Remote controller

Germany HBC

Hydraulic Oil Cooling

Air cooling

Model of chassis

Hino FS1ERV/Volvo FM400 64R B

Engine Power

302kw/1800rpm

Emission Standard

Euro III/ Euro IV
