Specifications
Brand Name :
CIVL
Model Number :
CIVL5031XJH-4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
USD41300/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300units/week
Delivery Time :
8-10days after the deposit
Packaging Details :
anti-corrosion package in nude
Name :
Ambulance
Drive wheel :
4x2
Engine capacity :
< 4L
Dimensions (l x w x h) (mm) :
5380×1920×2480mm
Fuel type :
Petrol / Gasoline
Gross vehicle weight :
2860
Horsepower :
135hp
Color :
White
Year :
2020
Description
Technical parameters
A Model CIVL5031XJH-4
Engine 4G69S4N
Fuel type Gasoline
Fuel consumption (ml) 2378
Overall dimensions (mm) 5380×1920×2480
Rescue Capsule Dimension (mm) 3330×1760×1600
Curb weight (kg) 2330
Gross Weight (kg) 2860
Wheel Base (mm) 3110
Emission standard Euro IV
Rated power kw(hp) 100(135)
Transmission MT Mechanical Type,
Max. speed (Km/h) ≥150km/h
Tire 195R15C
Standard configuration of vehicle
B 1 ABS+EBD
2 Anti-collision beam
3 rear-view mirror in driver’s cab
4 Remote control door lock
5 Single upward opening rear door
6 power-assisted steering
7 2 seats in driver's cab
Air conditioner and lighting system
C 1 Vehicle-mounted air conditioner in driver's cab
2 Vehicle-mounted air conditioner and heater in Patient's compartment 1
3 Ventilation fan mounted on the roof of Patient's compartment 1
4 4 LED lights and 2 Spotlight lights in the roof of Patient's compartment 6
5 Ultraviolet radiation disinfects light 1
Central power supply distribution system
D 1 Intelligent inverted power supply system with charging function (12V -220V) 1
2 12V DC power-supply system 1
3 12V outlets in driver's cab 1
4 outlets in Patient's compartment 4
5 12V outlets in Patient's compartment 1
6 40A standby battery in Patient’s compartment 1
7 waterproof outside outlet with protection cover 220V/16A 1
Emergency alarm system
E 1 Control plate of siren and alarm lamp mounted in driver's cab 1
2 100W loud speaker in the center of Flashing alarm light bar. 1
3 Blue Flashing alarm light bar mounted on the front roof of vehicle 1
4 2 Blue Flashing alarm lights mounted on left and right side of vehicle, Round cylinder alarm lights on the rear roof of vehicle 6

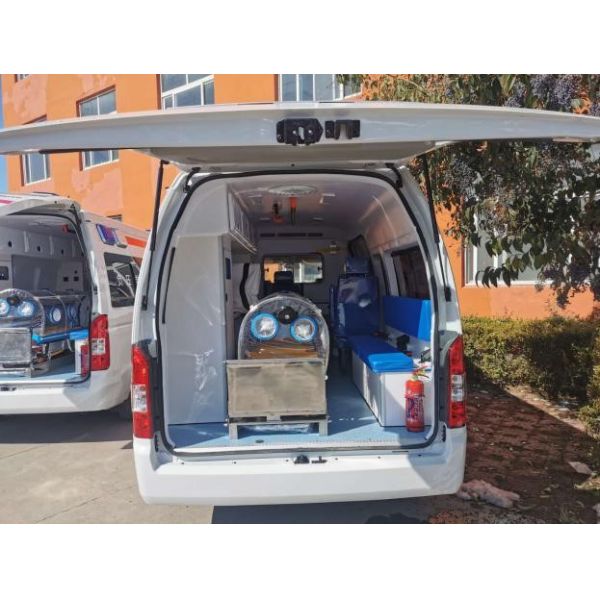

Patient's compartment

F

 1 Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation 1
2 Instruments and medicine cabinet mounted to the the left side of patient's compartment 1
3 One foldable doctor’s seat mounted to floor near to compartment wall 1
4 Safety Grad Bar and First-aid cabinet mounted to the the right side of middle door 1
5 one piece Long bench and one piece Independent doctor’s chair are mounted in right side of patient's compartment 1
6 Negative pressure isolation equipment mounted in the left medicine cabinet. 1
7 Supply system of oxygen with two outlets, one oxygen inhalator, 2 pcs 10L Oxygen cylinders with nominal pressure 15MPa 1
8 Storage cabinet with transparent sliding doors mounted on the upper left side of patient's compartment 1
9 Electrical control switches system 1
10 Safety Grad Bar mounted to the right of interior roof 1
11 Sliding infusion hanging bottle device mounted to the roof of patient's compartment 1
12 PVC Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. 1
13 1KG Fire extinguisher with support frame 1
14 Hand-free Intercom system between driver's cab and Patient's compartment 1
15 Thermal insulation, acoustic absorption and heat preservation protective layer shall be installed around and on the side wall of the Patient's compartment 1
16 Complete interior roof, side walls and A/C cover are made of Polymer FRP material 1
17 Outside design according to customer’s request 1
18 Mobile Self-lifting stretcher mounted to patient's compartment 1
19 Self-lifting stretcher support platform 1
20 Adjustable shovel Stretcher 1
21 Garbage bin 1
22 Negative pressure Isolation Chamber 1
